1.3 STRETCHMARQUEE - FREEFORM STRETCH TENTS
Professional Stretch Tents
The global benchmark in stretch architecture. From high-frequency rental fleets to semi-permanent hospitality venues, our 100% waterproof and fire-rated marquees are engineered for ultimate performance.
Modular Versatility
Our stretch tents are designed to be fully modular. Using our specialized guttering systems, multiple tents can be joined to cover any area size. All structures can be configured with sides up for maximum airflow or sides down with removable walls for total weather protection.
ARMOURSTRETCH™ PVC
Industrial / Semi-Permanent
The most rugged fabric in our range. Features a heavy dual-sided PVC coating on a high-tenacity polyester base. Built for high-tension, year-round installations.
- 450g/m² Weight
- 4.5 Ton Breaking Load
- 115 km/h Wind Rating
BEDOUINFLEX™ PU
Premium Event Rental
The industry standard for professional riggers. A high-performance PU-coated nylon that offers the iconic Bedouin aesthetic with 100% memory recovery.
- 380g/m² Weight
- 3.0 Ton Breaking Load
- 100 km/h Wind Rating
STRETCHFLEX™ PU
Lightweight / Residential
A versatile, easy-to-handle solution for residential users or occasional entertainers. Lightweight and 100% waterproof without sacrificing safety.
- 330g/m² Weight
- 1.8 Ton Breaking Load
- 60 km/h Wind Rating
Global Safety Standards
Fire Certified
Certified to Australian/NZ standards AS 1530.2 & 1530.3, plus EU standard EN13501-1:2007 - US standards NFPA 701:2010 & NFP705:2009 - FRENCH standard NFP92.503 Performance level M2 - BRITISH standard BS7837:1996
UV & Anti-Microbial
Treated with non-toxic applications to prevent fungal growth and UV-stabilised to ensure long-term colour protection.
Custom Branding
All fabric tiers are fully brandable with high-resolution digital dye-sublimation printing for your unique logos.
ARMOURSTRETCH PVC Stretch Tents
£1,708.00 GBP
Description
Our ARMOURSTRETCH™ is our most rugged and durable stretch fabric, specifically engineered for high-frequency commercial rentals and semi-permanent venue installations. Featuring an industrial-strength polyester knit base with a heavy single-sided PVC coating, it is built to withstand the most demanding environments.
Unlike standard stretch fabrics, ARMOURSTRETCH™ is designed for year-round installations and high-tension configurations. Work with our professional designers to integrate custom colours or high-impact printed branding to make your marquee a landmark structure.
Designed for durability without sacrificing the iconic organic aesthetic of a stretch marquee. ARMOURSTRETCH™ features a higher tensile strength and a thicker protective layer than standard fabrics, ensuring your structure remains pristine through multi-season use.
Industrial Resilience: Highly resistant to salt air, heavy rain, and prolonged UV exposure. Perfect for coastal locations and high-traffic commercial venues.
Commercial Expansion
Transform your outdoor space into a high-revenue venue. ARMOURSTRETCH™ integrates seamlessly with our modular wall systems and can be connected via guttering to cover massive areas with a permanent-structure feel.
Specifications
Structural Performance
- Warranty: 2-Year Global Waterproofing
- Max Size: 20m x 30m single unit
- Breaking Load: 4.5-Tonne at any point
- Wind Rating: Force 11-12 (120 km/h)
- Memory: Industrial 4-way stretch
Safety & Coating
- Waterproof: Double-sided Polymeric PVC
- Hygiene: Anti-Microbial (Viral/Bacterial)
- UV: Stabilised & Anti-fading
- Maintenance: Dirt repellent & Easy-clean
- Repair: Heat-patch compatible
Global Fire Safety Certifications
ARMOURSTRETCH™ PVC is impregnated with fire retardant chemicals meeting the world's most stringent safety standards:
AU/NZ: AS 1530.2 & 1530.3 | EU: EN 13501-1 | US: NFPA 701 & 705
UK: BS 7837:1996 | GER: DIN 4102-B2 | FR: NFP92.503 M2
Pole Pack Option
ALL ACCESSORY PACKS ARE READY-TO-SHIP AND INCLUDE POLES, PEGS, CLEATS AND ROPE
| Pole Pack Quantity by Size | 6x8m | 8x10m | 9x12m | 10x15m | 15x20m |
|---|---|---|---|---|---|
| 2.5m Alum. Poles | 2 | 4 | 8 | 8 | 10 |
| 3.3m Alum. Poles | 4 | 6 | 6 | 6 | 10 |
| 4m Alum. Poles | 1 | 1 | 1 | 3 | 6 |
| Pole Stands / Base Plates | 1 | 1 | 1 | 2 | 4 |
| Snap Hooks | 28 | 36 | 44 | 50 | 72 |
| Flying Rings | 6 | 8 | 10 | 10 | 16 |
| Steel Anchors (Pegs) | 10 | 16 | 22 | 30 | 45 |
| Cleat Rope Sets (Tensioners) | 8 | 10 | 12 | 15 | 20 |
| 100m Roll Nylon Rope | 1 | 1 | 1 | 2 | 4 |
| Total Weight (Approx) | 58kg | 79kg | 88kg | 124kg | 215kg |
Instructions
Edge Clamp Installation Video
Full Setup Guide
Bedouinflex PU Premium Stretch Tents
£1,895.00 GBP
These marquees come in a variety of standard shapes, sizes and colours, or you can work with our professional designers to create nearly any structure you can imagine with colours and printed logos & branding to make it uniquely yours.
Because of the incredible stretch in our Bedouinflex range, they create designs & configurations that are guaranteed to draw a crowd wherever you set it up. Add lights, lycra, stretch event architecture and inflatable structures to any of our stretch marquees and you've got a combination that will instantly take your event to the next level.
Our Bedouinflex tent is our flagship design made from the best quality fabric, providing you with a 100% waterproof stretch marquees. Suitable for frequent and regular use such as rentals, festivals, vineyards, roadshows, etc.
Additional Stretch Tent Options
We have also added to our range the option to have side walls to your structure to provide even more usable space and a larger footprint. As well as the walls, we have connectors that can be used to join several Stretch tents together/ Please see our Stretch Tent wall and connector options here.
Specifications
-
2 YEAR GLOBAL WATERPROOFING WARRANTY
-
Strong machine stitched and welded edges and seams
- Standard size tents available along with custom tents in any shape or any size
- up to 20m x 30m (66' x 100') in size for a single tent
- modular waterproof solutions to cover even the largest event.
- 100% Waterproof
-
Stretch polyamide (nylon) knit coated with a polymeric PU waterproof coating on both sides
-
Strongest machine stitched and welded edges and seams
-
Fire rated to the highest international safety standards
-
Impregnated (not coated) with fire retardant chemicals
- Certified to the following international standards
- AUSTRALIA and NEW ZEALAND standards AS1503.3:1999 and AS 1530.3:1992
- EU standard EN13501-1:2007
- US standards NFPA 701:2010 & NFP705:2009 *
- GERMAN standard DIN4102-Part1:1992 B2 classification *
- FRENCH standard NFP92.503 Performance level M2 *
- BRITISH standard BS7837:1996
-
Perfect 4 way stretch & memory
-
100% Full recovery memory
-
UV stabilised by Fluorocarbon impregnation
- Colour protection anti fading
-
Non toxic anti-Microbial application (viral, bacterial, fungal)
-
Breaking load of 3 tonne on any point
-
2.2m Width seams
-
All seams are stitched and welded for extra strength and durability
-
Lightweight 380g/m2
-
Both sides waterproof coating ensures quick runoff & fast drying times
-
Dirt repellent & machine washable up to 75 deg C
- Can also be cleaned on site using high pressure hoses and soft detergents
- Easily repaired without compromising the tents waterproofing
- Tents can be seamlessly repaired by heat application of patch to either side of the fabric
- All tents are supplied with simple to apply elastic clear repair tape for quick application repairs
-
Brandable fully printable with CMYK + white dye sublimation, digital or screen printing
-
Wind proof up to wind force 10 (100 km/h).
-
Wide range of colours with options for two-tone colours (e.g. white on top, silver underneath)
-
Perfectly suited for high end rental companies
Each "tent only" package is supplied with the stretch tent roof including connector and banner tabs, Heavy duty PVC transport bag, along with a centre pole cap, edge pole caps, and quick tape repair kit.
Pole Pack Option
ALL "TENT & COMPLETE ACCESSORY PACK" PACKAGES ARE AVAILABLE TO SHIP IMMEDIATELY AND INCLUDE THE POLES, PEGS, TENSIONING CLEATS AND ROPE
- Standard Pole Pack ST ACPACP Includes collapsible High grade 6005/T6 Aluminium Poles, Pole Stand, Snap hooks, Flying rings, PVC Industrial carry bags
- Heavy Duty Pole pack ST HDPACP Includes 60mm dia collapsible High grade 6005/T6 Aluminium Poles, 360 deg Swivel Pole Stand, Centre Pole Stand, Snap hooks, Flying rings, PVC Industrial carry bags

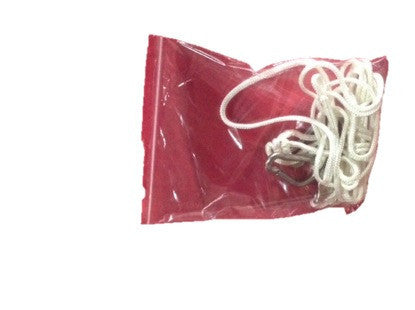

- ST CR Cleat Rope Tensioning pack which includes

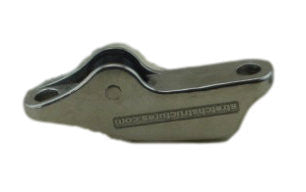

- Quick Tensioning Stainless steel Cleat, Rope for cleat system, Snap Hooks for cleat System
- ST AP 60cm Steel Anchor Pack
- 6mm Nylon Rope 100m Roll
| POLE PACK | QUANTITY | |||||||
| Stretch Freeform Tent Size | ST 4.5m x 6m | ST 6m x 8m | ST 8m x 10m | ST 9m x 12m | ST 10m x 15m | ST 15m x 20m | ||
| Collapsible Aluminium Poles 2.5m length | 4 | 2 | 4 | 8 | 8 | 10 | ||
| Collapsible Aluminium Poles 3.3m length | 1 | 4 | 6 | 6 | 6 | 10 | ||
| Collapsible Aluminium Poles 4m length | 0 | 1 | 1 | 1 | 3 | 6 | ||
| Collapsible Aluminium Poles 5m length | 0 | 0 | 0 | 0 | 0 | 1 | ||
| Pole Stand | 1 | 1 | 1 | 1 | 2 | 4 | ||
| Snap Hooks | 20 | 28 | 36 | 44 | 50 | 72 | ||
| Flying Ring | 4 | 6 | 8 | 10 | 10 | 16 | ||
| 60cm Steel Anchor (Pegs) | 6 | 10 | 16 | 22 | 30 | 45 | ||
| 1 Way Cleat Rope Sets | 4 | 4 | 4 | 4 | 4 | 4 | ||
| 3 Way Cleat Rope Sets | 2 | 4 | 6 | 8 | 11 | 16 | ||
| 6mm Nylon Rope 100m Roll | 1 | 1 | 1 | 1 | 2 | 4 | ||
| Industrial Carry Bags | 1 | 1 | 1 | 1 | 1 | 2 | ||
| Dimensions | 1.33x0.32x0.33+ 0.62x0.62x0.04 | 1.33x0.32x0.33+ 0.62x0.62x0.04 | 1.4x0.43x0.34+ 0.62x0.62x0.04 + 0.62x0.62x0.50 | 1.45x0.33x0.4+ 0.62x0.62x0.04 + 0.62x0.62x0.50 | 1.5x0.48x0.4(2)+0.62x0.62x0.08 | 1.5x0.48x0.4(Qty 3) + 0.62x0.62x0.16 | ||
| Weight | 42kg | 49Kg | 67Kg | 75Kg | 108Kg | 198Kg | ||
| Quantity of Cartons | 2 | 2 | 3 | 3 | 3 | 4 | ||
Instructions
Stretchflex PU Stretch Tents
£1,295.00 GBP
The STRETCHFLEX™ range offers a lighter alternative to our flagship Bedouinflex™ fabric, providing the same iconic organic aesthetic with increased portability. Perfectly suited for promotional events, festivals, and the occasional entertainer.
Specifications
- Fabric Weight: Lightweight 330g/m²
- Breaking Load: 1.8 Tonne at any point
- Wind Rating: Force 7 (61 kph)
- Seams: Stitched and Welded edges
- Waterproofing: 100% Polymeric PU Coating
- Maintenance: Machine washable up to 75°C
- Memory: 100% Full Recovery stretch
- Hygiene: Anti-Microbial & UV Stabilised
Inclusions and colour range
Standard Stretchflex™ packages are supplied with the roof, connector/banner tabs, heavy-duty PVC bag, centre/edge pole caps, and repair kit.

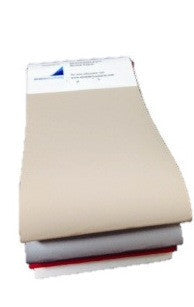

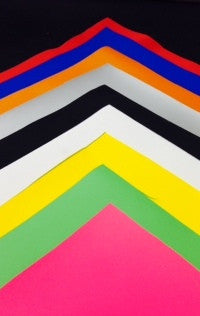

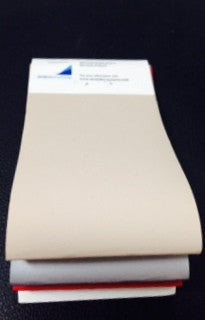

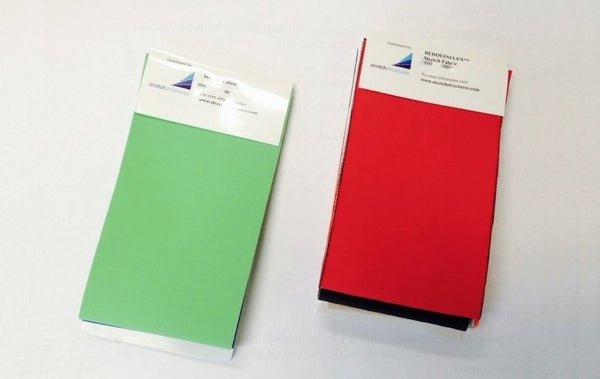

Available Stretchflex™ Colours:
Selected for high-impact visibility and classic event styling. Both sides are coated for quick runoff and fast drying.
Full Colour Panel Reference:
Pole Pack Option
ALL TENT PACKAGES INCLUDE THE POLES, PEGS, TENSIONING CLEATS, AND ROPE.
| Component | 4.5x6m | 6x8m | 8x10m | 9x12m | 10x15m | 15x20m |
|---|---|---|---|---|---|---|
| 2.5m Aluminium Poles | 4 | 2 | 4 | 8 | 8 | 10 |
| 3.3m Aluminium Poles | 1 | 4 | 6 | 6 | 6 | 10 |
| 4.0m Aluminium Poles | 0 | 1 | 1 | 1 | 3 | 6 |
| 5.0m Aluminium Poles | 0 | 0 | 0 | 0 | 0 | 1 |
| Pole Stand | 1 | 1 | 1 | 1 | 2 | 4 |
| Snap Hooks | 20 | 28 | 36 | 44 | 50 | 72 |
| Flying Rings | 4 | 6 | 8 | 10 | 10 | 16 |
| 60cm Steel Anchors (Pegs) | 6 | 10 | 16 | 22 | 30 | 45 |
| 1 Way Cleat Rope Sets | 4 | 4 | 4 | 4 | 4 | 4 |
| 3 Way Cleat Rope Sets | 2 | 4 | 6 | 8 | 11 | 16 |
| Total Weight | 42kg | 49kg | 67kg | 75kg | 108kg | 198kg |
Safety Compliance
Stretchflex™ is fire and safety compliant, featuring fabric impregnated with fire-retardant chemicals.
- AU/NZ: AS1503.3 & AS1530.3
- USA: NFPA 701 & NFP705
- UK: BS7837:1996
- EU: EN13501-1 & DIN4102 B2
- FRANCE: NFP92.503 (M2)
Installation Video

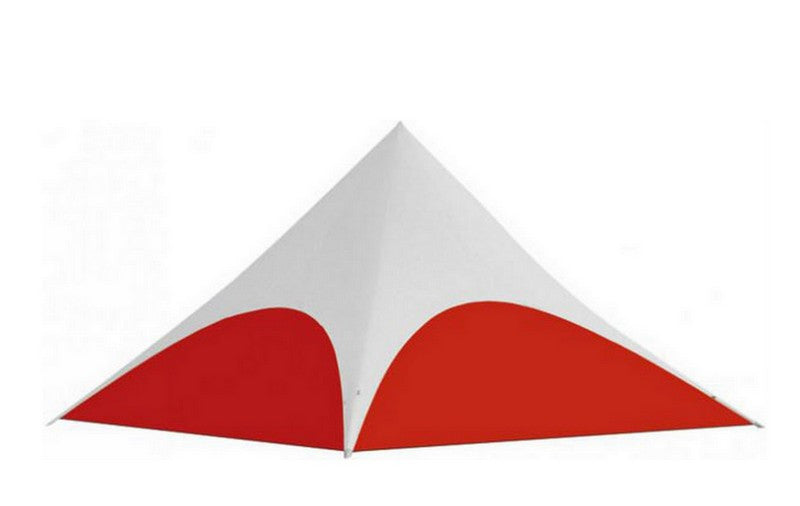

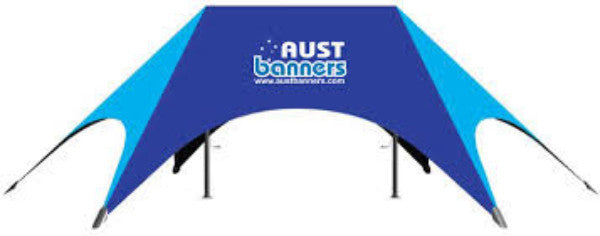

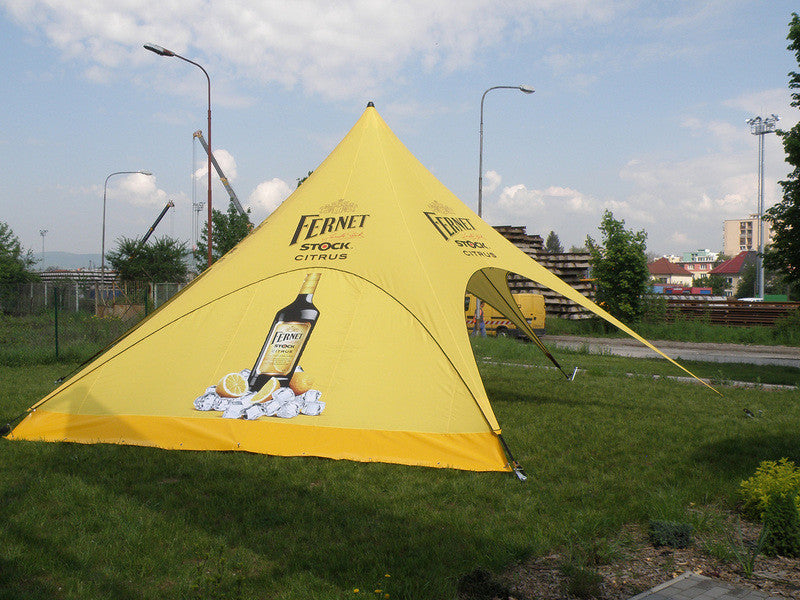

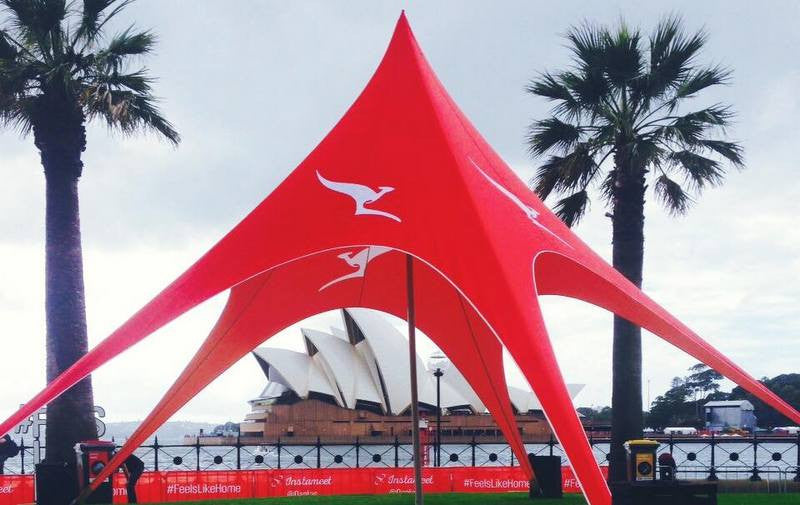

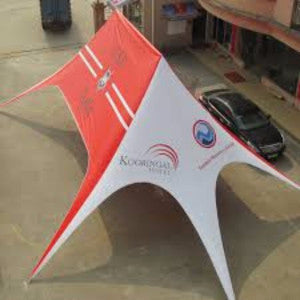

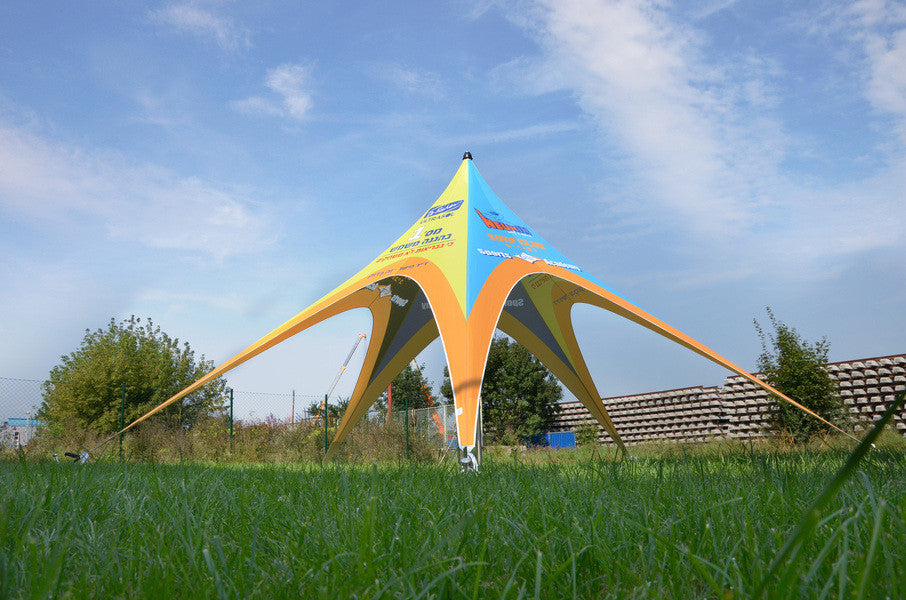

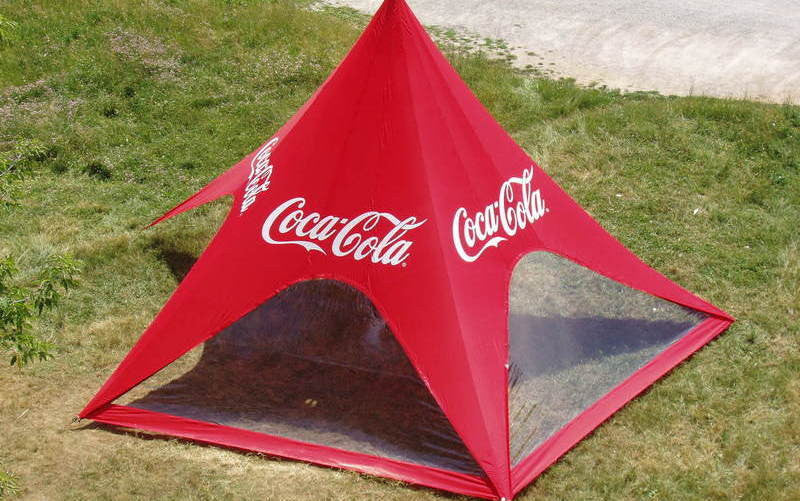

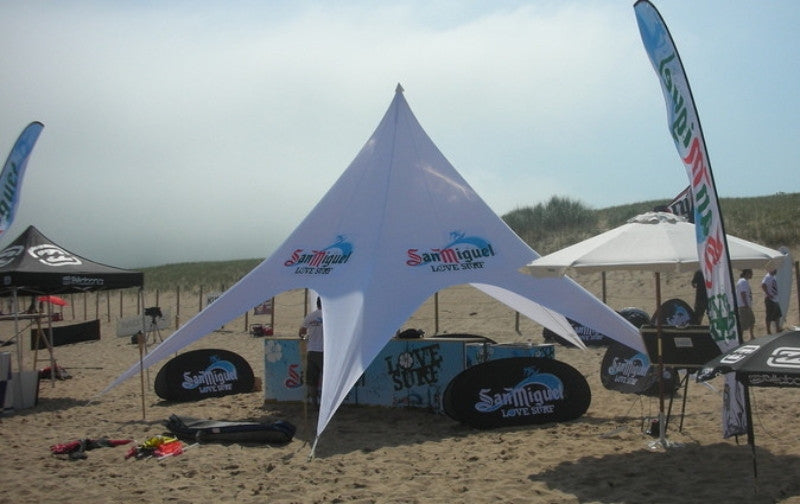

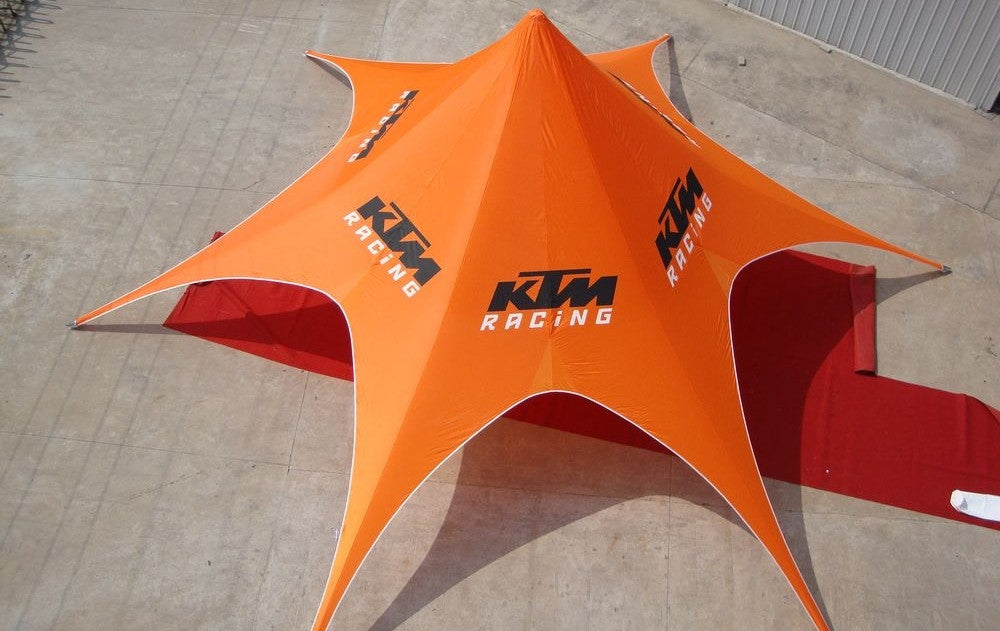

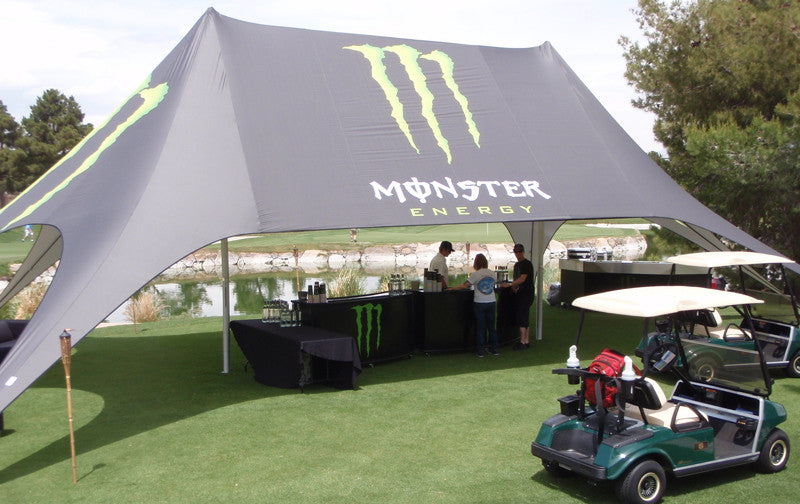

Branding - Stretch Tent/ Stretch Pods/ Star Marquee
£940.00 GBP
Using the latest digital technology, we can brand your tent with whatever brand or artwork that you require. Guaranteed to grab your customers attention!
- Full digital dye-Sublimation process
- CMYK + WHITE 5 colour printing to allow digital image printing on all tent colours
Stretch tent removable side walls
£460.00 GBP
Our Stretch Tents are so versatile and can be paired up to provide an eye catching cover for any shape space and size. Add some side walls and you have a little oasis exclusively designed for your event.
Side Walls
Add to your Stretch Tent the option of side walls custom made to provide you with the look that you require for your event or occasion. They are easily attached and allow your Stretch tent to create a more usable footprint around the sides of the tent.
- 100% waterproof system
- Aesthetically attractive
- Supplied with steel quick links and swivel clips for easy installation
Stretch tent connectors and gutters
£155.00 GBP
Our Stretch Tents are so versatile and can be paired up to provide an eye-catching cover for any shape space and size. With our connectors, you can make your space as big as you like and completely protected from the elements. Add some side walls and you have a little oasis exclusively designed for your event.
Connectors
This accessory is used to join 2 stretch tents together to expand your surface area and provide a larger waterproof cover for your guests. You can use multiple connectors to join more and more stretch tents together.
Innovative design to ensure 100% waterproof seal between tents.
The size connector used is determined by the size of the marquee that you are joining ie/ if you have a 10x15m Stretch Tent and you are joining two together on the 10m side of the tent, you will require a 10m Stretch Tent Connector.
- 100% waterproof system
- Aesthetically attractive
- Supplied with steel quick links and swivel clips for easy installation

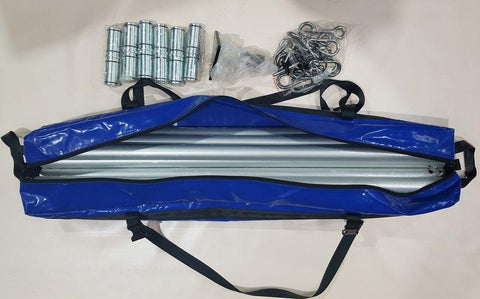

Complete Stretch Tent Pole, Cleat and Peg Accessory Set
£875.00 GBP
ALL TENT PACKAGES ARE AVAILABLE TO SHIP IMMEDIATELY AND INCLUDE THE POLES, PEGS AND TENSIONING CLEATS
| POLE PACK | QUANTITY | |||||||
| Stretch Freeform Tent Size | ST 4.5m x 6m | ST 6m x 8m | ST 8m x 10m | ST 9m x 12m | ST 10m x 15m | ST 15m x 20m | ||
| Collapsible Aluminium Poles 2.5m length | 4 | 4 | 4 | 8 | 8 | 10 | ||
| Collapsible Aluminium Poles 3.3m length | 1 | 4 | 6 | 6 | 10 | 10 | ||
| Collapsible Aluminium Poles 4m length | 0 | 1 | 1 | 1 | 2 | 4 | ||
| Collapsible Aluminium Poles 5m length | 0 | 0 | 0 | 0 | 0 | 1 | ||
| Pole Stand | 1 | 1 | 1 | 1 | 2 | 5 | ||
| Snap Hooks | 4 | 8 | 10 | 12 | 14 | 28 | ||
| Flying Ring | 4 | 8 | 10 | 12 | 14 | 20 | ||
| 60cm Steel Anchor (Pegs) | 6 | 10 | 16 | 22 | 30 | 45 | ||
| 1 Way Cleat Rope Sets | 4 | 4 | 4 | 4 | 4 | 4 | ||
| 3 Way Cleat Rope Sets | 0 | 4 | 6 | 8 | 10 | 16 | ||
| 6mm Nylon Rope 100m Roll | 0 | 25m | 25m | 50m | 50m | 100m | ||
| Industrial Carry Bags | 1 | 1 | 1 | 1 | 1 | 2 | ||
| Dimensions | 1.33x0.32x0.33+ 0.62x0.62x0.04 | 1.33x0.32x0.33+ 0.62x0.62x0.04 | 1.4x0.43x0.34+ 0.62x0.62x0.04 + 0.62x0.62x0.50 | 1.45x0.33x0.4+ 0.62x0.62x0.04 + 0.62x0.62x0.50 | 1.5x0.48x0.4(2)+0.62x0.62x0.08 | 1.5x0.48x0.4(Qty 3) + 0.62x0.62x0.16 | ||
| Weight | 42kg | 49Kg | 67Kg | 75Kg | 108Kg | 198Kg | ||
| Quantity of Cartons | 2 | 2 | 3 | 3 | 3 | 4 | ||

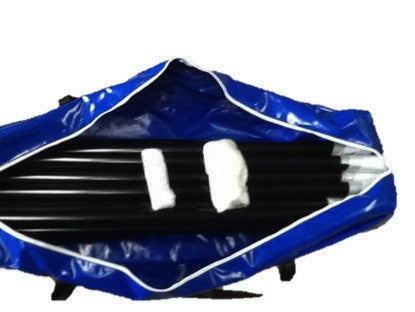

Heavy Duty Aluminium Swivel Pole and Accessory Set
Price on Application
- 60mm Dia Collapsible Alu Poles
- High grade 6005/T6 aluminium
- Stronger alloy to ensure poles remain light weight
- 360 deg Swivel Pole Stand
- Ability to bolt or secure the edge poles for secure semi-permanent installation
- Stainless steel M12 Eye Bolts
- Stainless Steel M12 Snap hooks
- High load rating MBS 1000Kg
- PVC Industrial carry bags
| POLE PACK | QUANTITY | |||||||
| Stretch Freeform Tent Size | ST 4.5m x 6m | ST 6m x 8m | ST 8m x 10m | ST 9m x 12m | ST 10m x 15m | ST 15m x 20m | ||
| Collapsible Aluminium Poles 2.5m length | 4 | 2 | 4 | 8 | 8 | 10 | ||
| Collapsible Aluminium Poles 3.3m length | 1 | 4 | 6 | 6 | 6 | 10 | ||
| Collapsible Aluminium Poles 4m length | 0 | 1 | 1 | 1 | 3 | 6 | ||
| Collapsible Aluminium Poles 5m length | 0 | 0 | 0 | 0 | 0 | 1 | ||
| Pole Stand | 1 | 1 | 1 | 1 | 1 | 4 | ||
| Swivel Pole Stand | 4 | 4 | 4 | 4 | 5 | 5 | ||
| Snap Hooks | 8 | 10 | 16 | 20 | 20 | 32 | ||
| Eye Bolts | 4 | 5 | 8 | 10 | 10 | 16 | ||
| Industrial Carry Bags | 1 | 1 | 1 | 1 | 1 | 1 | ||
| Dimensions | 1.33x0.32x0.33+ 0.62x0.62x0.04(5) | 1.33x0.32x0.33+ 0.62x0.62x0.04(5) | 1.4x0.43x0.34+ 0.62x0.62x0.04(5) | 1.45x0.33x0.4+ 0.62x0.62x0.04(5) | 1.5x0.48x0.4 + 0.62x0.62x0.04(6) | 1.5x0.48x0.4(2) + 0.62x0.62x0.04(9) | ||
| Weight | 32kg | 39Kg | 47Kg | 55Kg | 78Kg | 198Kg | ||
| Quantity of Cartons | 2 | 2 | 2 | 2 | 3 | 3 | ||

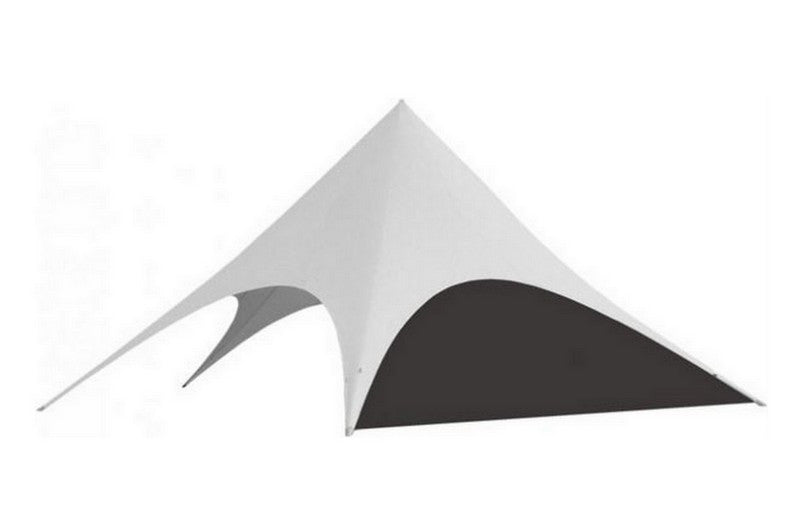

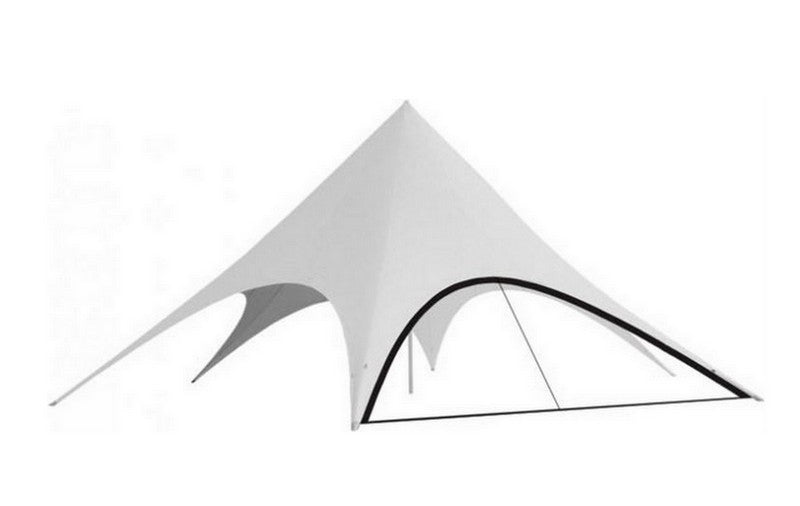

Star Marquee - Single Pole
£2,438.50 GBP
SMFS SERIES: SINGLE & TWIN POLE STAR MARQUEES
The SMFS Star Marquee (also known as the Tepee) is a simple, effective, and highly brandable structure designed to create a "wow" effect at any outdoor event. Utilising solid central poles, these star-shaped tents aesthetically cover large areas, making them the industry standard for roadshows, sporting events, and corporate festivals.
View GBP Price List
Premium Material Engineering
Our Star Marquees are engineered for durability and safety in harsh environments:
- Certified Fabrics: Manufactured from Fastex 500D (220g/m²), a high-tenacity 100% polyester fabric with a protective TPU/PU coating.
- Safety Standards: 100% Waterproof and Fire Retardant, certified to DIN 4102-1 B1 international safety standards.
- Structural Integrity: Includes heavy-duty aluminium or stainless steel telescoping poles with an integrated jack system for easy, optimal fabric tensioning.
- Advanced Protection: UV stabilised by Fluorocarbon impregnation with non-toxic anti-microbial treatments to resist viral, bacterial, and fungal growth.
Configurations & Size Guide
Available in both Single Pole (TPSP) for compact footprints and Twin Pole (TPDP) for hosting large events or stages.
| Model (Poles) | Dimensions | Height | Covered Area |
|---|---|---|---|
| TPSP 100 (Single) | 10m Diameter | 4.8m | 21.0m² |
| TPSP 130 (Single) | 13m Diameter | 4.8m | 31.0m² |
| TPSP 170 (Single) | 17m Diameter | 6.0m | 70.0m² |
| TPDP 150 (Twin) | 15m x 10m | 4.8m | 36.0m² |
| TPDP 225 (Twin) | 22.5m x 17m | 5.8m | 110.0m² |
Customisation & Accessories
Branding & Printing:
- High-resolution UV dye-sublimation or screen printing.
- Full digital printing on roof panels and sidewalls.
- Custom reversible printing options available.
Enclosure Options:
- Full Sidewalls for weather protection.
- Windowed and Panorama-view wall panels.
- Sidewalls with integrated zipper doors.
Included in the Package
Every SMFS Star Marquee is supplied as a complete deployment kit for rapid installation:
- Professional Star Marquee Roof Cover.
- Heavy-duty Central Pole(s) with integrated lifting jack system.
- Steel Anchoring Set (including 75cm/95cm and 25cm pin spikes).
- Site Measuring Cables for perfect star alignment.
- Heavy-duty PVC Transport Bags for all components.
Full product sheet available here and technical size guide here.

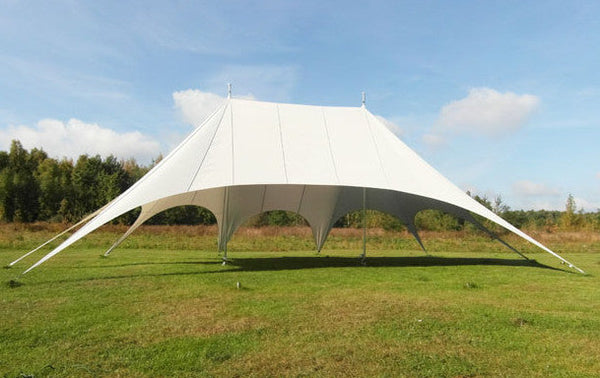

Star Marquee - Twin Pole
£4,320.00 GBP
Star Marquees are available in both single and double pole formats, providing an instantly recognisable, high-visibility platform for large-scale events and brand activations.
STAR MARQUEE PRICE LIST (GBP)
- ✔ 100% Waterproof & UV Stabilised
- ✔ Fabric Options: Lightweight Polyester, Heavy Duty PVC, or Stretch Skins
- ✔ Full Branding: UV dye sublimation printing available
- ✔ Safety: Fire rated to AU, British & International standards
- ✔ Protection: Non-toxic anti-microbial (viral/bacterial/fungal)
- ✔ Storage: Compact design for transport in small vehicles
Specs
Twin Pole Star Marquee Technical Data
| Specification | 15.0m Twin | 18.0m Twin | 22.5m Twin |
|---|---|---|---|
| Span / Footprint | 15.0m x 11.3m | 18.0m x 13.0m | 22.5m x 17.0m |
| Covered Area | ~125 m² | ~180 m² | ~290 m² |
| Seating Capacity | Up to 70 people | Up to 100 people | Up to 160 people |
| Standing Capacity | Up to 120 people | Up to 170 people | Up to 250 people |
| Central Height | 5.0m | 5.0m | 6.0m |
| Arched Clearance | 2.1m | 2.1m | 2.3m |
| Pole Specification | 76mm Aluminium | 76mm Aluminium | 100mm Aluminium |
| Transport Dim. | 1.5m x 0.4m (Bags) | 1.6m x 0.4m (Bags) | 1.8m x 0.5m (Bags) |
| Approx. Weight | 95kg | 115kg | 165kg |
Included in package
- Cast Aluminum centre cap
- 76mm dia Aluminium Telescoping Pole
- Crank Assembly & ground stakes
- Star Cover (range of fabrics)
- Heavy duty PVC Carry Bag
- Site Measuring Cables
- Ground Anchors
- Side walls (optional accessory)

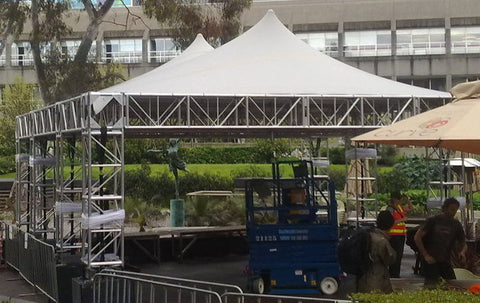

MEGA Cube - Stretch Tent Truss Stage
£8,975.00 GBP
Complete "Mega" stretch tent and truss frame structure including aluminium truss frames, base plates and screws, and stretch tent cover
The MEGA range of multi purpose, extra-strong, truss frame structures are ideal for temporary stages, promotions or shelter.
The entire super strong frame is made using Aluminium Box Truss, covered by strong flame retardant Bedouinflex Stretch fabric. Temporary and permanent fixing options are available, including integrated floor and ballast solutions
MEGA - Stretch Tent Truss by Stretch Marquees and Fabric Structures
Specifications
- Easy and fast assembly is guaranteed by simple fixation system.
- Available in a broad range of sizes - with custom size options available
- from 4m x 4m all the way to 20m spans
- Modular design with our connection tunnels to allow greater coverage or the creation of MEGA villages
- Structure variants:
- domes, cubes and shell shapes
- Skin Variants for walls
- PVC, Opaque PVC, Transparent PVC, Polyester, Bedouinflex Stretch Fabric
- A broad range of accessories and options are available. Including but not limited to
- Cooling, heating, internal elements, windows, doors, internal lighting and emergency illumination, full printing and ballast options, Frame reinforcement, Internal podiums, bar desk, staging, DJ desk, Flat TV and screen consoles, hangers etc.
- Compact design for easy storage and transport
| TYPE | |||||||||
| BASIC DATA | 550-30 | 600-60 | 860-86 | 1000-100 | 1500-100 | ||||
| Width (mts / ft) | 5.5 / 18.5 | 6 / 20 | 8.6 / 28 | 10 / 33 | 15 / 50 | ||||
| Depth (mts / ft) | 3 / 10 | 6 / 20 | 8.6 / 28 | 10 / 33 | 10 / 33 | ||||
| Height (mts / ft) | 3 / 10 | 3 / 10 | 4 / 13 | 4 / 13 | 4 / 13 | ||||
| Floor Space (sqm) | 16.5 | 36 | 75 | 100 | 150 | ||||
| Approximate capacity (people) | |||||||||
| Standing (Disco) | 40 | 60 | 115 | 180 | 250 | ||||
| Standing (Cocktail) | 20 | 35 | 60 | 110 | 160 | ||||
| Sitting (Cinema) | 22 | 40 | 80 | 120 | 185 | ||||

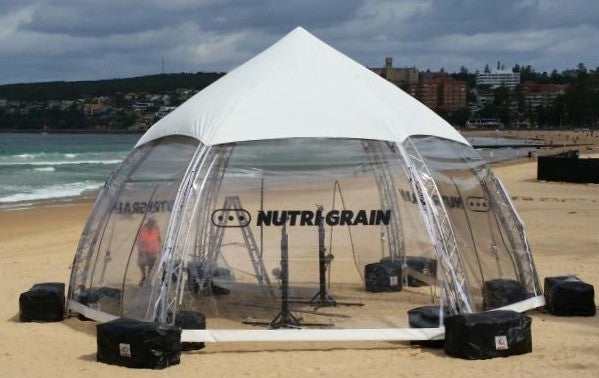

MEGA Dome - Stretch Tent Truss Stage
£13,395.00 GBP
Description
Complete "Mega" stretch tent and truss frame structure including aluminium truss frames, base plates and screws, and stretch tent cover
The MEGA range of multi purpose, extra-strong, truss frame structures are ideal for temporary stages, promotions or shelter.
The entire super strong frame is made using Aluminium Box Truss, covered by strong flame retardant Bedouinflex Stretch fabric. Temporary and permanent fixing options are available, including integrated floor and ballast solutions
Nutri Grain - 6 Leg Dome - by Stretch Marquees and Fabric Structures on Sketchfab
Specifications
- Easy and fast assembly is guaranteed by simple fixation system.
- Available in a broad range of sizes - with custom size options available
- from 4m dia all the way up to 20m dia
- Modular design with our connection tunnels to allow greater coverage or the creation of MEGA villages
- Structure variants:
- domes, cubes and shell shapes
- Skin Variants for walls
- PVC, Opaque PVC, Transparent PVC, Polyester, Bedouinflex Stretch Fabric
- A broad range of accessories and options are available. Including but not limited to
- Cooling, heating, internal elements, windows, doors, internal lighting and emergency illumination, full printing and ballast options, Frame reinforcement, Internal podiums, bar desk, staging, DJ desk, Flat TV and screen consoles, hangers etc.
- Compact design for easy storage and transport
| TYPE | |||||||||
| BASIC DATA | 700 | 1000 | 14000 | ||||||
| Diameter (mts / ft) | 7 / 23 | 10 / 33 | 14 / 46 | ||||||
| Height (mts / ft) | 3.8 / 12.5 | 4.2 / 14 | 5.5 / 18 | ||||||
| Floor Space (sqm) | 35 | 75 | 145 | ||||||
| Approximate capacity (people) | |||||||||
| Standing (Disco) | 45 | 95 | 185 | ||||||
| Standing (Cocktail) | 25 | 60 | 110 | ||||||
| Sitting (Cinema) | 30 | 65 | 130 | ||||||

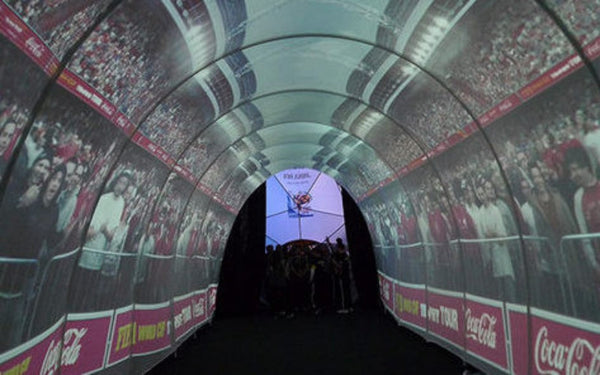

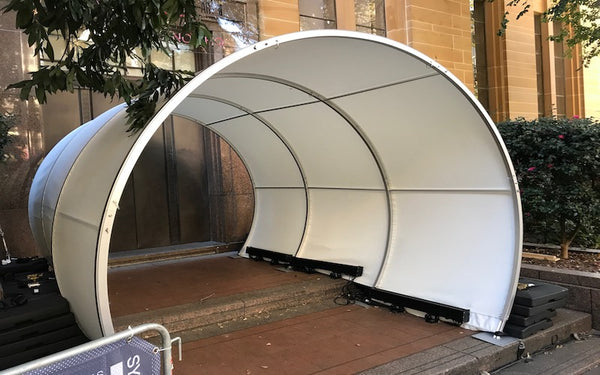

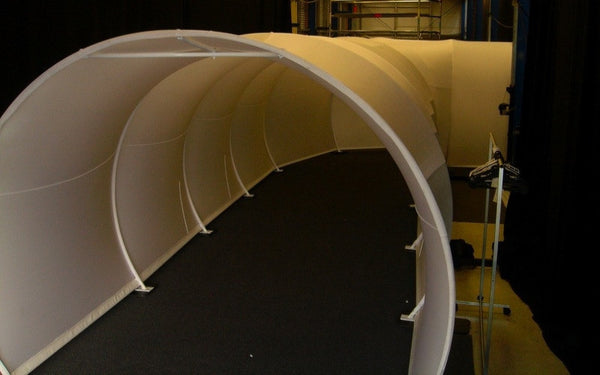

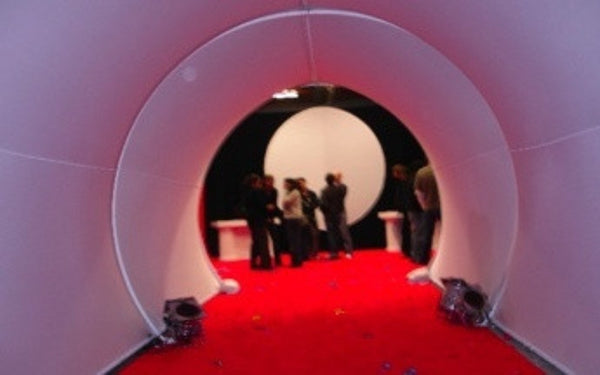

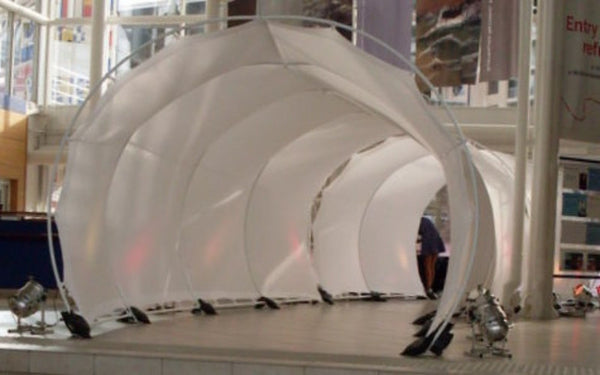

Stretch Tunnels
Price on Application
- Stretch Tunnels are available in custom shapes, colours and sizes.
- We stock various standard width tunnels in 3m, 4m, 5m and 6m profiles and can customise the dimensions to suit
- They are ideal for entry ways for guests and provide a stunning reception, especially when used with light projection.
- Available in both indoor Lycra and outdoor waterproof versions
- Assorted stock sizes are available. Custom designed tunnels and colours are available on request.
- For colourful daytime events, we can manufacture any of our products in a wide range of colours or with branding
Check out our video showcasing how easy these eye-popping structures are to install.
Stretch Fabric Sample Swatchs
£0.13 GBP
Colour sample swatch for our stretch tent fabric
- Both Bedouinflex and Stretchflex 100% waterproof stretch fabric swatchs available

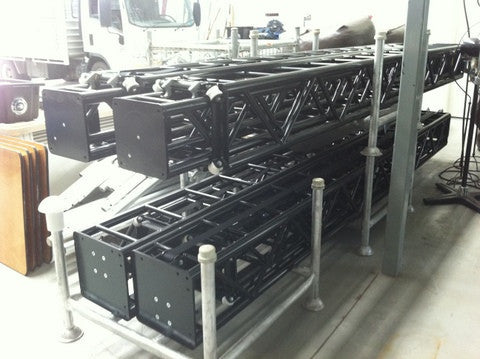

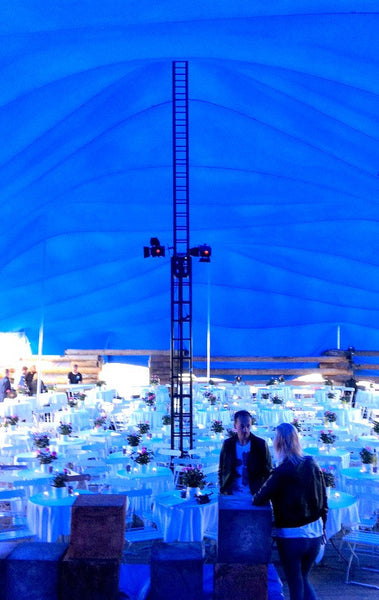

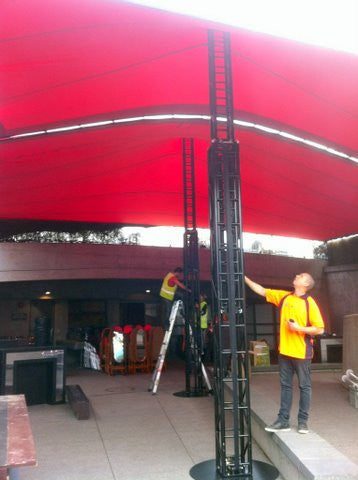

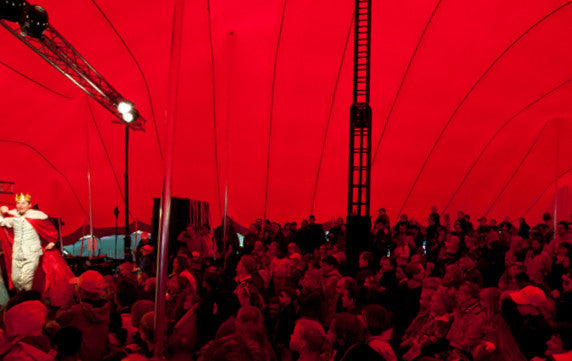

Winch Truss King Pole
£4,675.00 GBP
- Easy winch system to allow adjustment from 4.3m through to 10m in height
- 300mm x 300mm box truss
- High grade 6061-T6 structural grade aluminum
- Black Powder coated or Anodised Finish
- 800mm dia black powder coated or anodised base
Frequently Asked Questions
What is the side wind pressure?
The truss base plates can be weighted and/or pegged into the ground to ensure that they are secure from any wind load applied to the side. If used with the stretch tents, then the tension of the stretch tent is applied to also secure the truss.
What size is the base plate?
The standard base is 800mm dia 6mm thick Steel. However we can custom make the base to any size that would suit.
What is the total load?
There are some load testing videos showing how the truss works and the geared system for winding up and down here:
https://www.youtube.com/watch?
https://www.youtube.com/watch?
Engineering rating is for loads greater than 6 Tonne.
What about the static load?
This will depend on how it is used. For example, the live load will differ depending on the tent it is used on, our engineer can calculate static loads based on the live load applied.
We can customise these to suit any loads required, based on our customer's application. The standard product is designed for our tents so all our engineering calcs are based solely on use with these tents. However, we have standard TUV tables for the truss used so can increase the spec and design if needed for other applications or the application of static loads.
How do they handle uplift?
As the base can be ballasted or secured via ground anchors or pegs they can be engineered for any uplift force.
Do they come with guy wires?
Not as standard but can easily be added.
Quick lock tensioning cleat and rope set
£20.00 GBP £175.00 GBP
Our Stretch Tents Quick Lock Tensioning Cleat features an in-built pulley that offers a compact solution for tent rigging with a 1:1 or 2:1 advantage. It provides a quick, positive lock that is easy to release when required, making it the tent rigger's preferred choice for installing any stretch marquee or tent and adjusting guy lines.
⬇ Download Tension Cleat Instructions
Manufactured from marine-grade stainless steel for lightweight and durable performance.
Pack Components & Inclusions
✔ Quick tensioning stainless steel cleat
✔ Snap hooks for cleat system (Quantity: 2)
Medium Size Specifications
• Rope Compatibility: Suits 6mm to 8mm rope lines
• System Rope Included: 6mm Premium Nylon Braid
• Breaking Capacity: 700Kg robust tension capacity
• Build Properties: Highly abrasion and wear resistant
Large Size Specifications
• Rope Compatibility: Suits 8mm to 10mm rope lines
• System Rope Included: 8mm Premium Nylon Braid
• Breaking Capacity: 1000Kg industrial tension capacity
• Build Properties: Highly abrasion and wear resistant
Pack Quantities
Tent Size: ST 4.5m x 6m
• 1-Way Cleat Rope Sets: 4
• 3-Way Cleat Rope Sets: 0
Tent Size: ST 6m x 8m
• 1-Way Cleat Rope Sets: 4
• 3-Way Cleat Rope Sets: 4
Tent Size: ST 8m x 10m
• 1-Way Cleat Rope Sets: 4
• 3-Way Cleat Rope Sets: 6
Tent Size: ST 9m x 12m
• 1-Way Cleat Rope Sets: 4
• 3-Way Cleat Rope Sets: 8
Tent Size: ST 10m x 15m
• 1-Way Cleat Rope Sets: 4
• 3-Way Cleat Rope Sets: 10
Tent Size: ST 15m x 20m
• 1-Way Cleat Rope Sets: 4
• 3-Way Cleat Rope Sets: 16
Lycra Stretch Tunnels
£1,850.00 GBP
The Ultimate Event First Impression.
Our Stretch Tunnels aren't just walkways—they're architectural statements.
- Custom Everything: Shapes, sizes, and colours tailored to your brand.
- Projection Ready: The perfect surface for stunning light shows.
- Day & Night Impact: Available in vibrant colours or with custom branding.
- Easy Install: High-impact results with low-effort setup.
Check out our video showcasing how easy these eye-popping structures are to install.
© 2026 UK Stretch Tents. Powered by Shopify
