EVENT FLOORING & STAGING

Horizon - Floating flooring for outdoors

Price on Application

Materials and Components

Aluminum profiles to support wooden planks.
Adjustable galvanized iron feet.
Base consists of 27 mm thick laminated spruce planks, coated with a durable melamine resin.
Standard colors for aluminum perimeter profiles: RAL 9010, Silver Anodized, White Matte, Dove-Grey Matte, Dark-Brown Matte, Special Grey.

Flooring Options

The flooring comes in two versions:

Standalone: Suitable for various situations as independent flooring.
Adapted: Designed to accommodate the Kube, Onda, Vela, Eclettica and Qzebo structures.

Leveling

The flooring is equipped with adjustable feet that can be leveled using a wrench or screwdriver, making it suitable for uneven ground and surfaces. The adjustable feet can travel up to 30 mm in the middle of the floor and 50 mm along the perimeter.

Ballasting

For added stability, the flooring can be ballasted using 400 x 400 x 40 mm concrete blocks, each weighing approximately 15 kg. These blocks are discreetly placed between the support profiles of the wooden boards, remaining hidden from view.

Dimensions

The flooring is designed for flexibility and can be extended and adapted even after the initial purchase. This is possible due to the insertable components, allowing for extension on both sides.

Stretch tent storage and care HORIZON - Wooden Flooring Brochure

FAQ

What is the thickness of the base for the aluminium perimeter profile?

The base is made of laminated spruce planks and has a thickness of 27 mm. It is coated with a high-strength melamine resin.

Are there any special coatings provided for the aluminium perimeter profile?

No, the company does not provide special coatings in paint, carpet, linoleum, or other wear-resistant walkable materials for the aluminium perimeter profile.

What types of finishes are available for the aluminium profiles that support the wooden planks?

The aluminium profiles come in two finish options: Smooth finish and Matt-rough finish.

Are there any additional color options for the aluminium profiles?

Yes, further RAL colors with smooth glossy finish or smooth matt finish are available. You can refer to the price list for more information on these options.

Can you provide some examples of the available colors for the aluminium profiles?

Some available colors include Special Grey, Dove-Grey, Silver, Anodized White, White (RAL 9010), and Dark-Brown. These are just a few of the options, and more may be available based on the RAL color chart.

What is the flooring equipped with?

The flooring is equipped with adjustable feet, which can be levelled on uneven terrain and surfaces using a key or a screwdriver.

What is the maximum adjustment range of the adjustable feet?

The adjustable feet have a maximum adjustment range of 30 mm in the central part of the floor and 50 mm along its perimeter.

How can I level the flooring on uneven surfaces?

You can use a key or a screwdriver to adjust the feet, ensuring that the flooring is level even on uneven terrain.

What is the ballasting system for this flooring?

The flooring can be weighted with washed gravel plates measuring 400 x 400 x 40 mm, each weighing approximately 16 kg. These plates are inserted between the support profiles of the wooden boards and remain completely hidden from view.

How does the ballasting system work?

You can insert the gravel plates between the support profiles of the wooden boards to add weight and stability to the flooring.

Can the flooring be expanded or adapted after the initial purchase?

Yes, the flooring can be extended and adapted after the initial purchase by adding components that allow for expansion. This flexibility makes it versatile for various needs and configurations.

What components are available for expanding the flooring?

Specific expansion components may vary, but you can inquire about additional components designed to extend and adapt the flooring to your specific requirements.

Is the ballasting system easy to install?

Yes, the ballasting system is designed for ease of installation. You can insert the gravel plates between the support profiles with relative ease to provide stability to the flooring.

Is the flooring suitable for outdoor use?

The adjustability of the feet and the ballasting system make the flooring suitable for both indoor and outdoor use, allowing you to set it up on various types of terrain.

Can you provide more information about the maintenance of this flooring?

Maintenance requirements may vary, but typically, this flooring is relatively low-maintenance. Regularly check and adjust the adjustable feet as needed for a level surface. Keep the gravel plates clean and free of debris for optimal performance

View full product details »

Steel Frame Integrated Wooden Flooring

Price on Application

Designed to be a quick and easy floor system to install, our integrated flooring system has a steel substructure base on top of which we place high grade PU coated floorboards slotted into the aluminium bearers and supported by steel crossmembers. Marquees are connected directly to the aluminium bearers using the integrated flooring baseplates. As with all of our structures the flooring is modular and can be supplied in various formats.

Pricing is per square meter based on standard dimensions

custom sizes and shapes available on request

very fast assembly & dismantle
Modular sections can be customised to suit the length of any marquee
ideal for uneven surfaces
integrated with the marquee providing 100% waterproof structure & greater safety
protects the surface it lays on (grass areas, tennis courts)
Flooring Weights - Your Substructure Floor System can be supplied with a hidden weight system

removing the need to use stakes or external visible ballast

Specifications

Alu sub frame profile: 68mmx31mmx31mm
Steel tube: 40*80mm
Wood dimensions: 30( thickness) x80( width)x3000mm(length)
Polyurethane coated stained scots pine (Pinus sylvestris L. var. mongolica Litv)
Total height from the ground: aprox 71mm

View full product details »

Cassette Flooring

Price on Application

Designed to be a quick and easy floor system to install, our Cassette flooring uses a ‘top hat’ aluminum extrusion across the width of the structure with either 2.4m or 3m plywood top "cassette" floor boards that drop straight into position.

The floor boards have an aluminium framework with anti-skid treated plywood inserts. Offering a simple and easy way to install a level floor quickly.

View full product details »

CoirFloor - PVC backed Coir Event Flooring

£18.90 GBP

Coirfloor is an environmentally friendly event flooring, manufactured from 100% natural coconut fibre bonded to a PVC backing. Coir event matting is tough and durable while still feeling soft and natural. Perfect for event flooring inside marquees and tents as it is long lasting and resilient to moisture.

With a golden brown appearance, and supplied with a hard wearing rubber PVC base it's an aesthetically pleasing and environmentally friendly marquee flooring for any style event.

Coirfloor matting provides additional insulation inside your tent or marquee, thereby providing a warmer and dryer environment for guests. Coirfloor matting is available in rolls or can be supplied as a half moon or 2 half moons forming a full circle for use in yurts, teepees and bell tents.

These are available in either 15mm or 17mm thickness with a standard width of 2 metres (6"6'). Coirfloor can be cut to size or supplied in roll lengths up to approximately 46 metres (50 yards).

Coir fibres are tough but soft to the touch and have a lovely bright natural colour.
Each end of the mat is bound with a natural webbing and machine stitched for strength and durability.
The advantage of buying rolls of coir is that you can cut it to your desired length. Use a box cutter to cut your matting to the custom size that your project requires.
The mats make great temporary flooring for marquees, as they can be laid out quickly to cover large areas, providing a comfortable alternative to other types of carpet or surface.
The PVC backing reduces the dislodging of coir fibres.
Environmentally friendly product.
Reusable: hose down and use time and time again

View full product details »

DandyDura - Polypropolyene Coir Event Flooring

£19.75 GBP

DandyDura® is a woven polypropylene matting, providing a modern long lasting alternative to traditional coir or coconut mat flooring. It is a very popular matting for use in marquees because it is easy to maintain, very durable, fully reversible, weatherproof, light to handle and provides an aesthetic finish to your event.

The width is 2 metres (6"6') in roll lengths up to approximately 46 metres (50 yards) or cut lengths as required. DandyDura® is also suitable for use in exhibition halls, walkways, hospitality buses, corridors, glamping and for industrial installations.

DandyDura®: woven matting ideally suited to outdoor events.
Functional: made from polypropylene it is easily cleaned and very strong.
Reusable: hose down and drip dry, use time and time again. It is also reversible.
All-weather: non-rot, non-absorbent.
Easily handled: much lighter than traditional coverings, easily rolled up for handling and transporting.
Sanitised: power hose with detergent for safe re-use.
Attractive choice of colours: Green, Corn, Black and Grey Tweed, Black and Natural Fleck

View full product details »

Pro Floor - Portable event flooring

£29.95 GBP £42.12 GBP

Pro-Floor EF is the ultimate event flooring solution.

This lightweight outdoor flooring is tough enough to withstand heavy-duty impact while also offering grass protection to safeguard valuable underlying surfaces. Ideal for carnivals, expos, festivals and major events as well as marquee flooring, this dynamic event flooring is pedestrian-friendly, easy to install and remove, and comes in a range of colours. Pro-Floor EF is portable flooring suitable for a range of surfaces, from synthetic turf to natural grass, ice arenas and indoor surfaces.

Portable, lightweight flooring that‰۪s easy to assemble and suitable for a variety of events
Tough and robust to withstand heavy weights
Clean and dry surface
Protects underlying surfaces
Wheel chair access
Broad range of colour options for branding
Glow in the dark option available

View full product details »

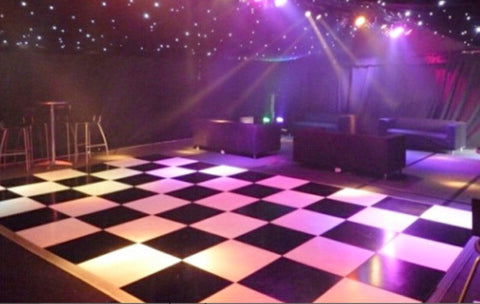

Snap together Modular Dance and Event Floor

£23.00 GBP

Portable event floors are the perfect choice for all of your special event needs. Whether your event is on grass, sand, synthetic turf, asphalt, compact base, concrete or any other solid sub surface. Our snap together modular dance floor is the right portable flooring system for your needs.

Our all-weather portable floors require no tools or skills for installation or removal. Simply drop into place and the simple snap clip system will ensure the floor is secure and holds in place.

Outdoor event marquees and commercial exhibits are high-traffic, demanding environments where appearances and ease of portability really do matter. Portable event and exhibit floors are designed with this in mind. Not only will you find installation and removal to be a snap, but all our portable flooring is low maintenance and easily portable. Choose from multiple color options and designs to quickly customize your exhibit space whether it be indoor or outdoor and have it back to basics in no time.
