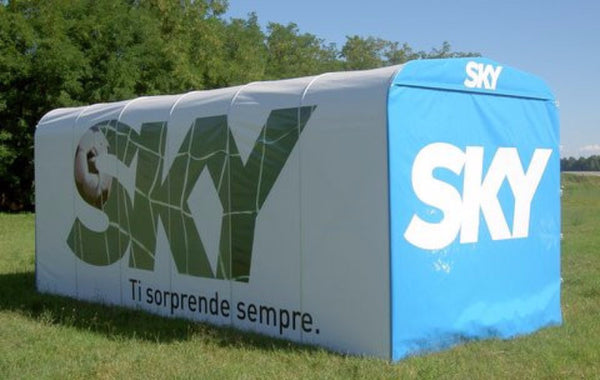

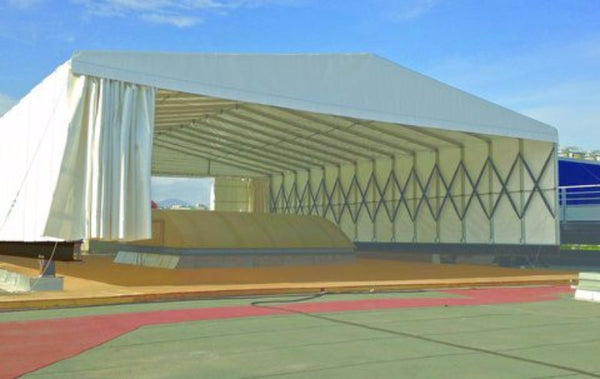

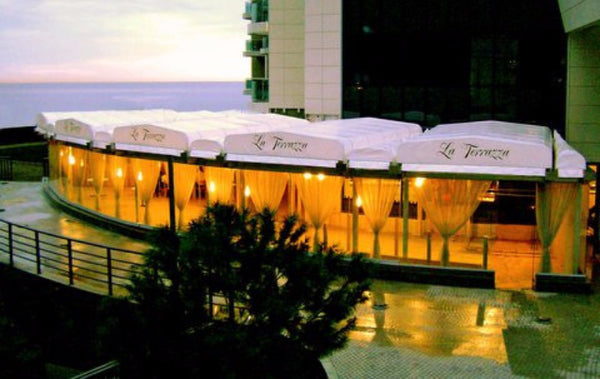

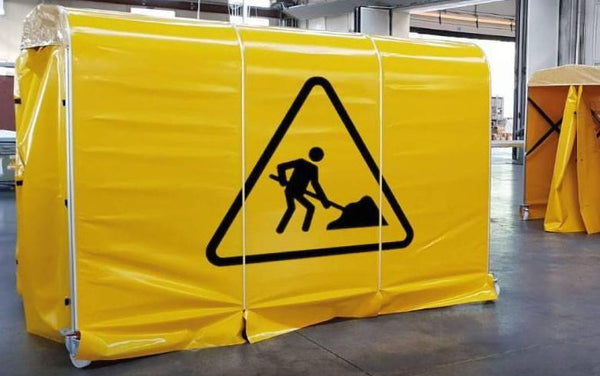

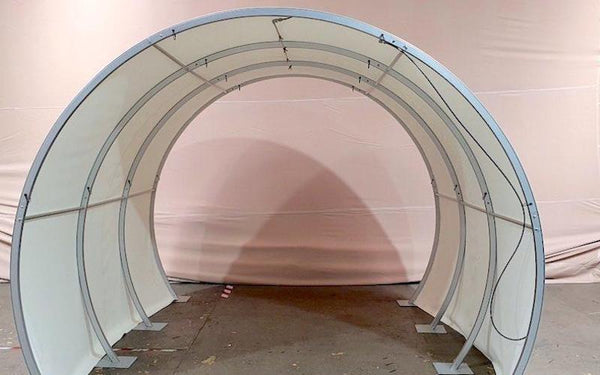

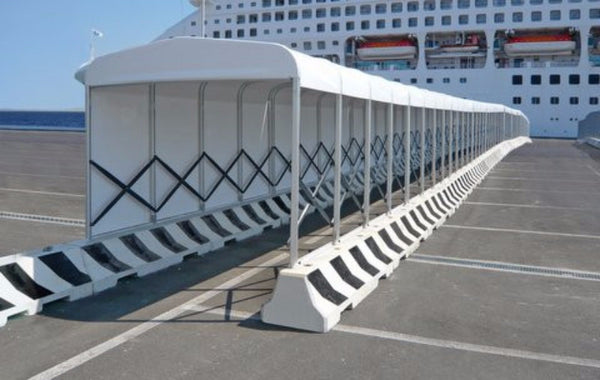

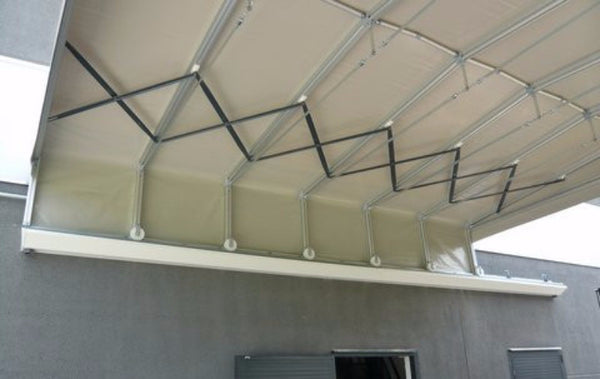

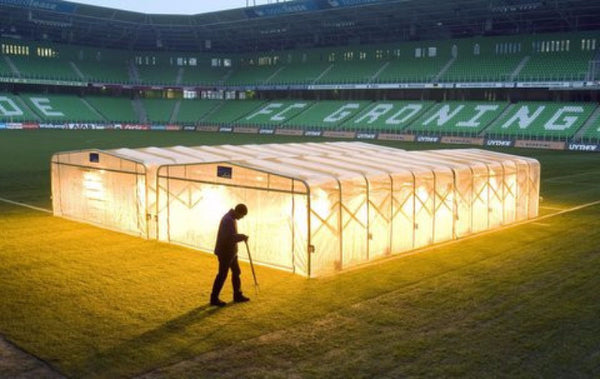

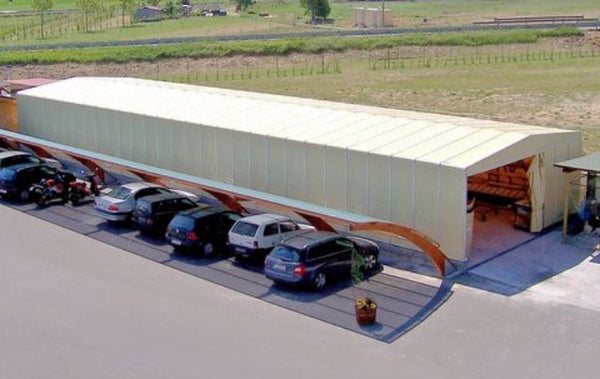

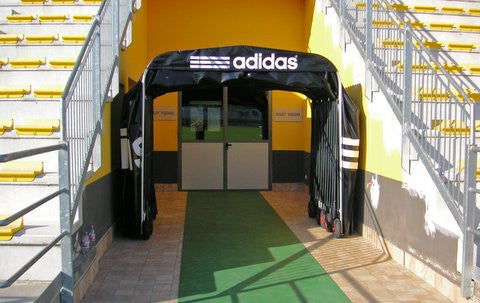

Retractable Tunnels

Price on Application

Our retractable tunnel concept is incredibly versatile and lends itself to a range of applications. Each order can be designed and manufactured according to clients needs. Large, small, fixed or retractable - whatever your situation, our Design & Installation team can find a solution to your search.

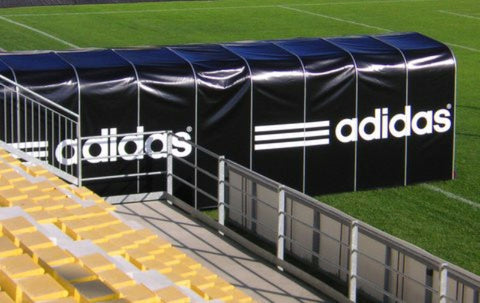

Folding garages, football tunnels, weatherproof walkways or temporary warehouses - no problem. Whichever industry, the right application is available: sports, retail or leisure

Designed and manufactured in Europe, our retractable tunnel solutions provide a perfect versatile solution

RETRACTABLE TUNNEL BROCHURE

Specifications

READY BOX 1 TUNNEL

READY BOX 1 EXTRA

READY BOX 2 TUNNEL

READY BOX 4 TUNNEL

READY BOX 6 TUNNEL

Technical Features

• Fast assembly in a matter of hours to a few days.
• Foundation-free.
• Maintenance-free for reduced total lifetime investment.
• Space saving: a 5 mts tunnel can be retracted up to a minimum of 35 cms when not in use (this is a Rb1 tunnel on nylon wheels)
• Suitable for permanent or temporary installation
• Easy installation, modification or relocation as the frame is modular and expandable.
• User and operator friendly
• Coloured roofs and frames, clear windows and covers, curtains (sliding or with central opening) branding and signwriting are available.
• Tunnels can be linked together or linked to existing structures or buildings (flashing and plates are available to facilitate a smooth connection)
• Completely tailored, made to measure and fully customizable to site's requirements
• Innovative and unique design
• Long-lasting and cost effective
• Widths: from 1 mt up to 12 mts
• Eave height: from 1.8 mts up to 5 mts
• Reduced height tunnels - roof only systems - wall mounted models either single and double pitch, fixed, curved, sloped modules, bespoke sizes smaller or larger are available upon request
• Wheel Options: pneumatic tyres, nylon wheels (with and without lift proof tracks) multi-directional pneumatic tyres, multi-directional nylon wheels, heavy duty wheels and much more.
• Eyelets, stainless steel tracks, safety straps, handles to pull the tunnel back as an option
• covers are made from single panels, each a metre wide, which are fitted into the profile’s groove with a kader strip on both sides

FAQ

Can I buy an off the shelf product?

No. All tunnels are made to order.

What colour and material is the frame made of?

Silver anodised aluminium frame.

What secures the tunnel once it's extended to its' full length?

Pantograph tensioning levers. Colour RAL 9006.

What fabric and colours are the covers made from?

• Fabric Poly RS ADR 650 GSM. Standard colours: White, Grey, Champagne, Black and Green.
• Clear Crystal plus PVC available.
• Blackout PVC available.
• Windows and clear roof available.

Are the tunnels fire rated?

All tunnels are fire rated to:

• UNI EN 13782:2015.
• USA NFPA 701.
• Australia AS 1530.

What type and size are the wheels?

• Nylon wheels 125mm /4.9".
• Optional lift proof tracks.
• Pneumatic / rubber wheels 140mm-200mm / 5.5-8".

What is the maximum size of a tunnel?

• Max width: 15m / 50'
• Max height: 5m / 16'6" (eave)
• Max length: there is no minimum or maximum length.

What is the retracted length?

For a 10m /33' tunnel retracts to 67cm / 2' 3"

Can the tunnel go on sloped ground?

Can be sloped Vertically.

Can the tunnel bend sideways?

Horizontally up to 90 degrees.

Does the tunnel have a wind loading?

Supported by the proper anchoring system and with the application of tensioning straps, tunnels have a wind resistance of 100klph / 62MPH.

How do you anchor / secure the tunnel if necessary?

Wall fix brackets

Ground fix brackets

Concrete or water weights with tensioning straps

Is the tunnel difficult to deliver?

No. It's easily freighted in custom solid timber boxes

View full product details »

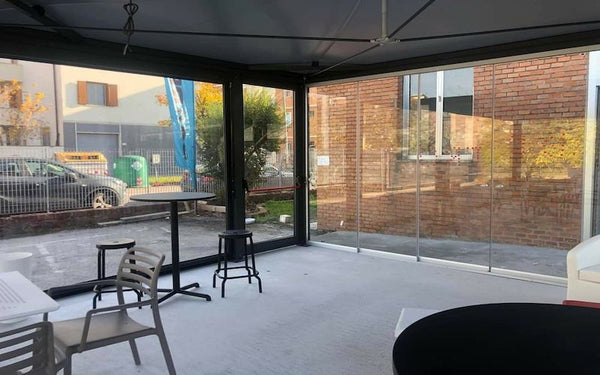

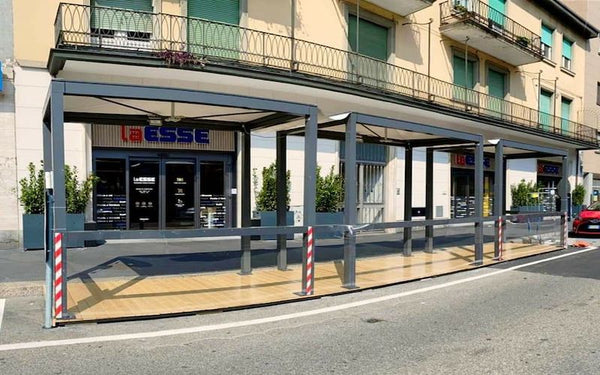

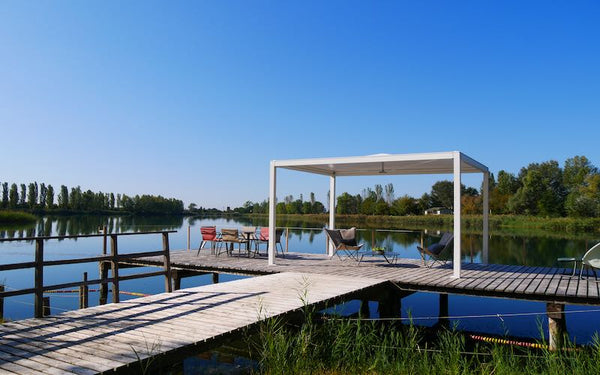

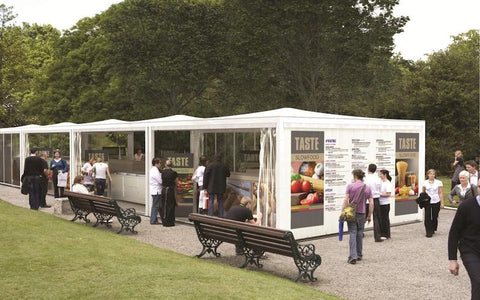

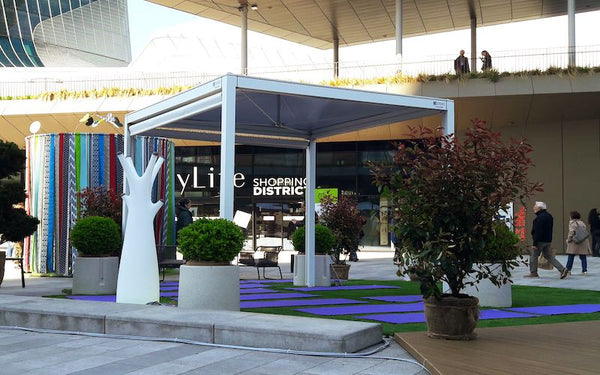

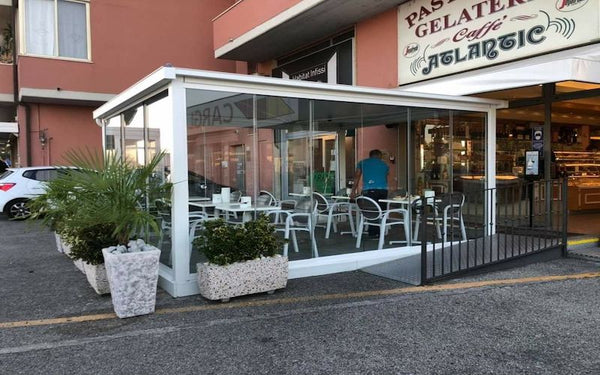

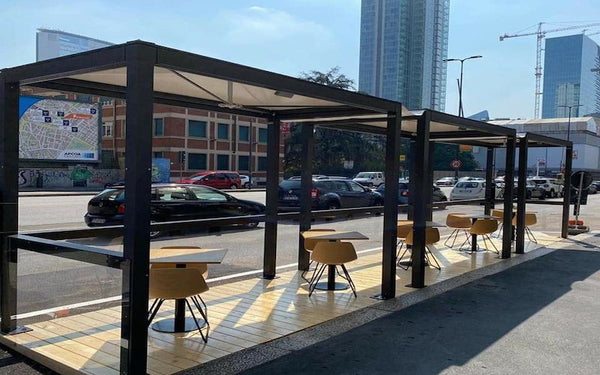

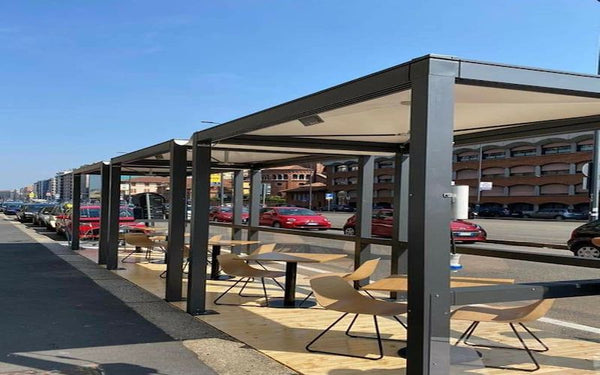

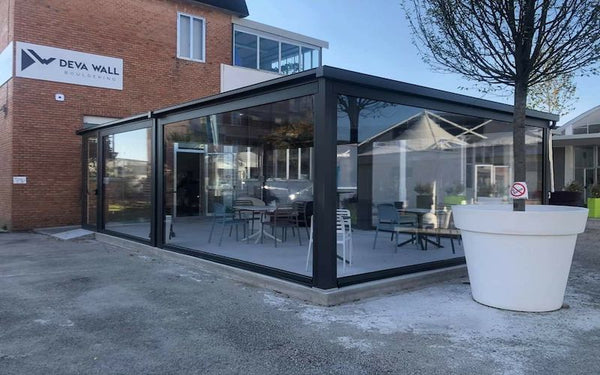

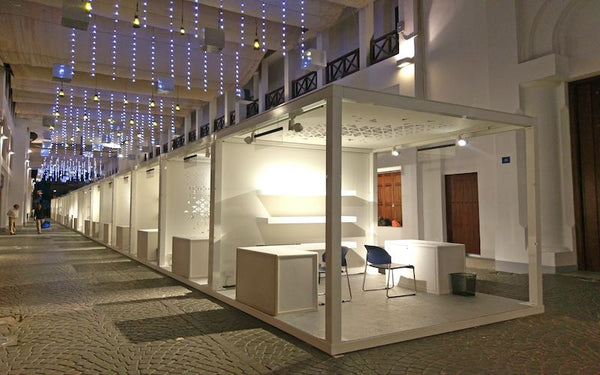

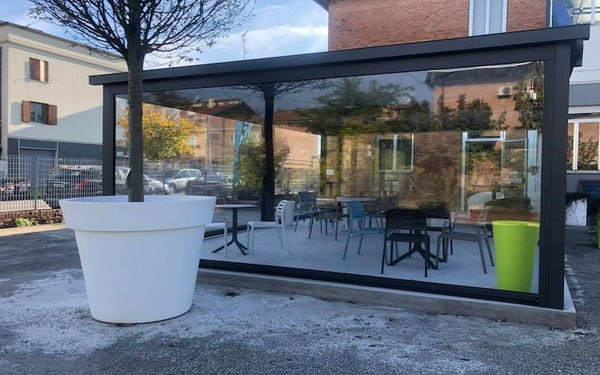

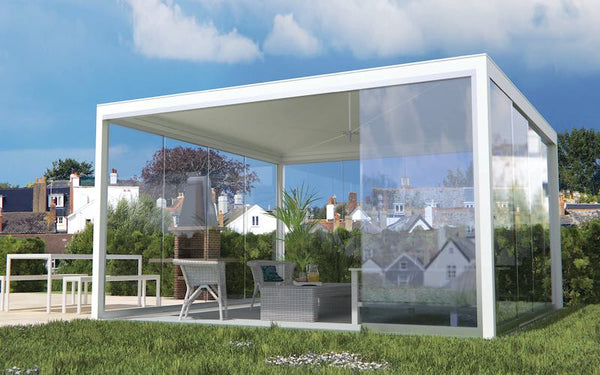

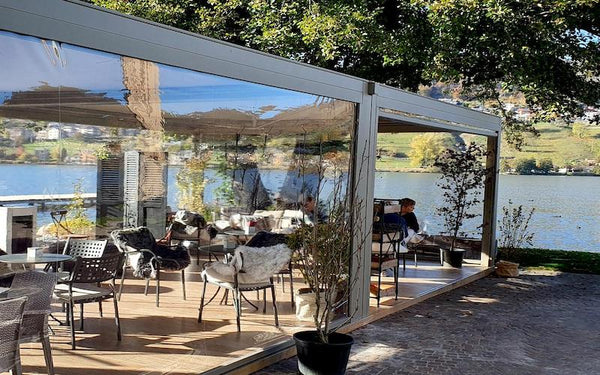

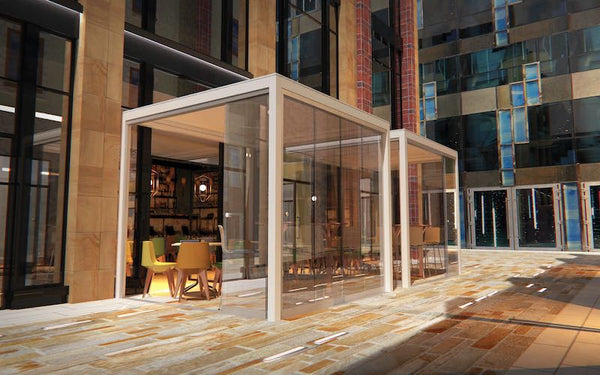

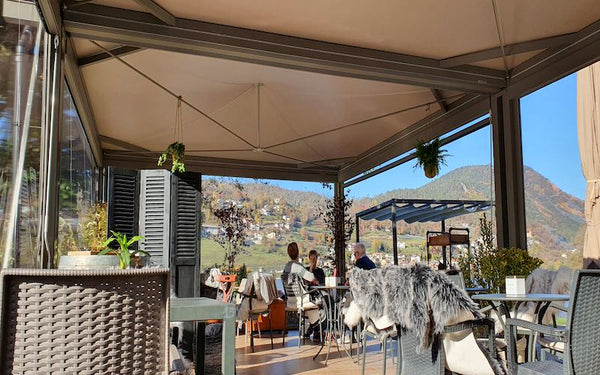

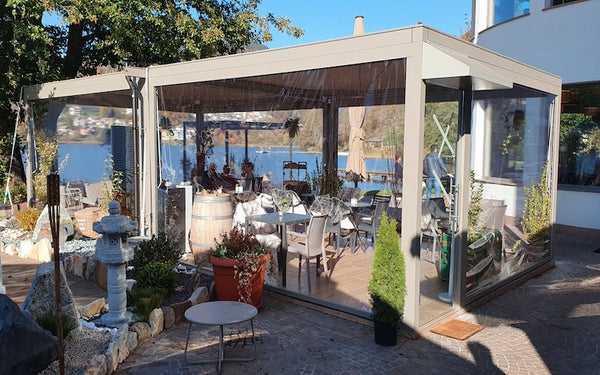

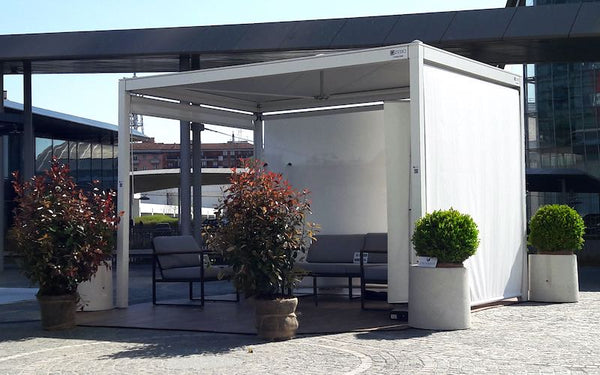

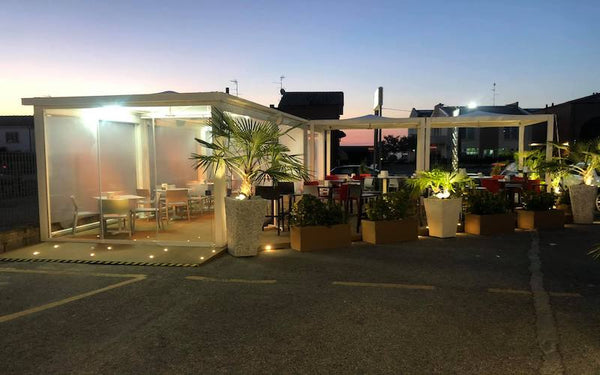

QZEBO - Modern PVC Gazebos

Price on Application

QZEBO is the new revolutionary modern gazebo. With an innovative design that does away with the traditional pitched roof, replaced by a slight hint of a rise. Making the whole structure more linear and elegant without affecting the practicality and speed of set up.

The QZEBO can be installed quickly, at almost any location and come with optional extras, such as, fabric zip roller walls, glass sliding doors/walls, heating or cooling options and flooring.

The standard range of QZEBO gazebos are available in width spans from 3m through to 5m. We also offer the opportunity to customise to suit a variety of spans, lengths and heights.

The modular design enables QZEBO cubes to be linked easily to further expand your usable outdoor space without having destructive works carried out.

QZEBO allows users to create solutions for cost effective and attractive venues. They are perfect for outdoor dining at bars and restaurants, providing cover for walkways, highlighting your products at trade shows, or to stylishly decorate a private garden or terrace.

Instructions

FAQ

View full product details »

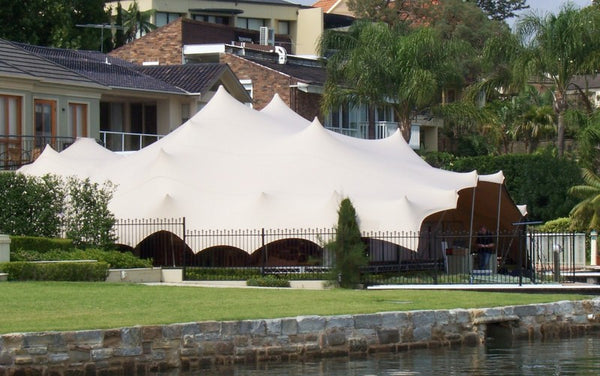

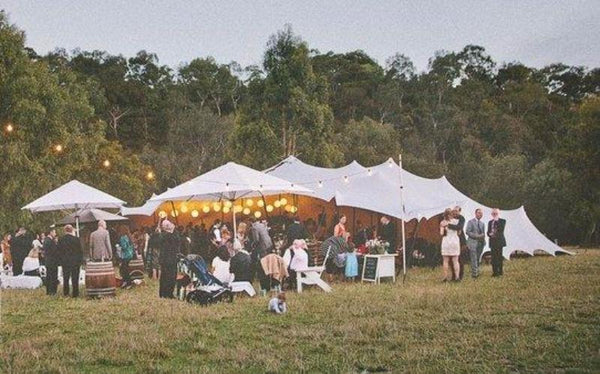

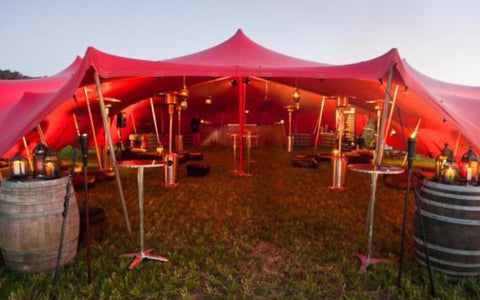

Stretchflex Stretch Tents

£1,295.00 GBP

Stretchflex stretch marquees come in a variety of standard shapes, sizes and colours, or you can work with our professional designers to create nearly any structure you can imagine with colours and printed logos & branding to make it uniquely yours.

Because of the incredible stretch in our stretchflex range, they create designs & configurations that are guaranteed to draw a crowd wherever you set it up.  Add lights, lycra, stretch event architecture and inflatable structures to any of our stretch marquees and you've got a combination that will instantly take your event to the next level.

Our Stretchflex tent is a lighter alternative tent option providing you with similar properties and stretch as our flagship fabric, Bedouinflex.  These would suit perfectly for any occasional events that require the amazing look of our modern freeform stretch tent provides at such things as roadshows, festivals, occasional events, etc.

If you are a hire company, or a pub or restaurant looking for a stretch tent to remain installed for longer periods of time or to be used constantly for many years, please look at our Bedouinflex stretch tents which are designed for this purpose.

Specifications

• Download spec sheet here

• 12 MONTH GLOBAL WATERPROOFING WARRANTY

• Strong machine stitched and welded edges and seams
• Standard size tents available along with custom tents in any shape or any size
• up to 20m x 15m (66' x 50') in size for a single tent
• modular waterproof solutions to cover even the largest event
• 100% Waterproof̴
• Stretch polyamide (nylon) knit coated with a polymeric PU waterproof coating on both sides
• Strongest machine stitched and welded edges and seams
• Fire and safety compliant
• FR Impregnated (not coated) with fire retardant chemicals
• Certified to the following international standards
• AUSTRALIA and NEW ZEALAND standards AS1503.3:1999 and AS 1530.3:1992
• EU standard EN13501-1:2007
• US standards NFPA 701:2010 & NFP705:2009
• BRITISH standard BS7837:1996
• GERMAN standard DIN4102-Part1:1992 B2 classification
• FRENCH standard NFP92.503 Performance level M2
• UV stabilised by Fluorocarbon impregnation
• Non toxic anti-Microbial application (viral, bacterial, fungal)
• Breaking load of 1.8 tonne on any point
• 2.2m Width seams
• Lightweight 330g/m2
• All seams are stitched and welded for extra strength and durability
• Both sides waterproof coating ensures quick runoff & fast drying times
• Dirt repellent & machine washable up to 75 deg C
• Can also be cleaned onsite using high pressure hoses and soft detergents
• Easily repaired without compromising the tents waterproofing
• Tents can be seamlessly repaired by heat application of patch to either side of the fabric
• All tents are supplied with simple to apply elastic clear repair tape for quick application repairs
• Brandable fully printable with CMYK + white dye sublimation, digital or screen printing
• Wind proof up to wind force 7 (61 kph / 38 mph).
• Wide range of colours with options for two-tone colours (e.g. white on top, silver underneath)
• Perfectly suited for the small hire company. promotional event, or occasional entertainer

Inclusions and colour range

Each "tent only" package is supplied with the stretch tent roof including connector and banner tabs, Heavy duty PVC transport bag, along with a centre pole cap, edge pole caps, and quick tape repair kit.

Our tents in the Stretchflex fabric are available in white, sand and red.  Please see the Bedouinflex for a full range of colours.

Pole Pack Option

ALL "TENT & COMPLETE ACCESSORY PACK" PACKAGES ARE AVAILABLE TO SHIP IMMEDIATELY AND INCLUDE THE POLES, PEGS, TENSIONING CLEATS AND ROPE

POLE PACK	QUANTITY
Stretch Freeform Tent Size	ST 4.5m x 6m	ST 6m x 8m	ST 8m x 10m	ST 9m x 12m	ST 10m x 15m	ST 15m x 20m
Collapsible Aluminium Poles 2.5m length	4	2	4	8	8	10
Collapsible Aluminium Poles 3.3m length	1	4	6	6	6	10
Collapsible  Aluminium Poles 4m length	0	1	1	1	3	6
Collapsible  Aluminium Poles 5m length	0	0	0	0	0	1
Pole Stand	1	1	1	1	2	4
Snap Hooks	20	28	36	44	50	72
Flying Ring	4	6	8	10	10	16
60cm Steel Anchor (Pegs)	6	10	16	22	30	45
1 Way Cleat Rope Sets	4	4	4	4	4	4
3 Way Cleat Rope Sets	2	4	6	8	11	16
6mm Nylon Rope 100m Roll	1	1	1	1	2	4
Industrial Carry Bags	1	1	1	1	1	2
Dimensions	1.33x0.32x0.33+ 0.62x0.62x0.04	1.33x0.32x0.33+ 0.62x0.62x0.04	1.4x0.43x0.34+ 0.62x0.62x0.04  + 0.62x0.62x0.50	1.45x0.33x0.4+ 0.62x0.62x0.04 +  0.62x0.62x0.50	1.5x0.48x0.4(2)+0.62x0.62x0.08	1.5x0.48x0.4(Qty 3) + 0.62x0.62x0.16
Weight	42kg	49Kg	67Kg	75Kg	108Kg	198Kg
Quantity of Cartons	2	2	3	3	3	4

Instructions



STRETCH TENT INSTALLATION INSTRUCTIONS

STRETCH TENT STORAGE AND CARE

View full product details »

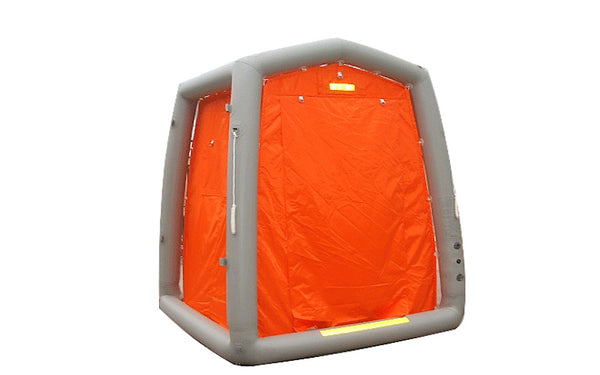

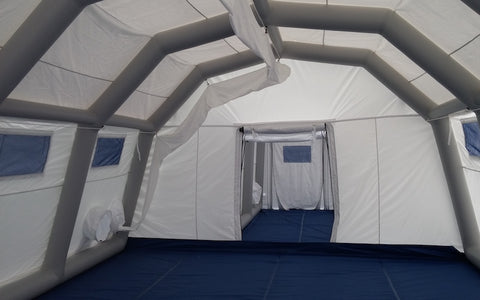

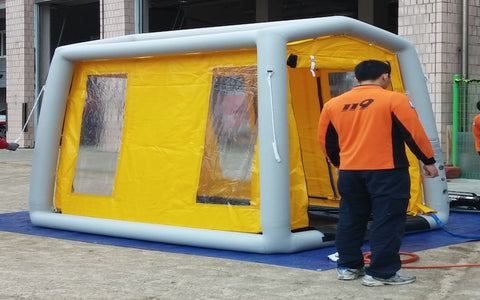

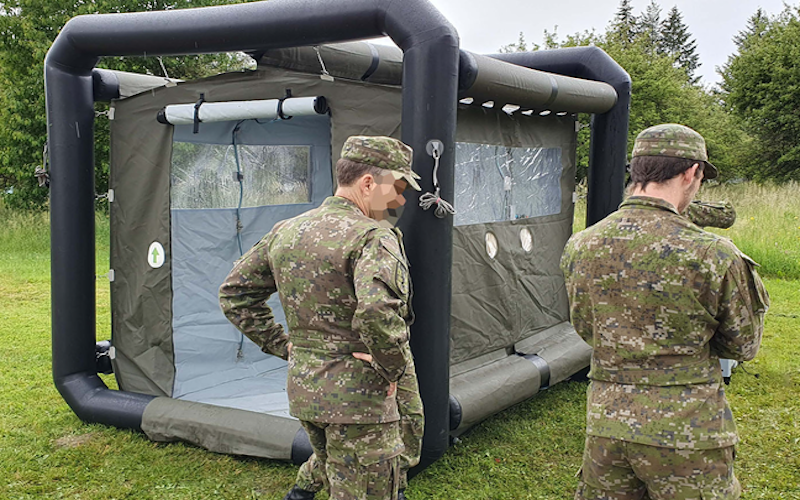

Negative Pressure Inflatable Medical or Industrial Tent

£8,000.00 GBP

Our easy to install inflatable Negative Pressure tent is designed to create a negative pressure environment inside the tent and reduce the risk of contamination.

What it is used for

- Triage medical tent for respiratory virus or contagious assessment

- Isolation or Intensive Care Unit (ICU)

- Medical tent

- Industrial safety tent

Features

Features of our Negative Pressure inflatable tent are

- Prevents the spread of contaminated air

- Provides more than 2.5 Pascal negative pressure when entry door is closed and sealed.

- 12 ACH (Air changes per hour) is possible with proper negative pressure unit.

- Rapid and easy deployment

- There are Pass boxes on the side of tent wall for access pipes or electrical ducting

Specifications

- Frame: Airtight inflatable fabric, 26 ~38 oz, 0.65mm ~ 0.9mm thick, Durable enough against

4.3 psi (Inside frame pressure)

- Cover: 600Deniar polyester coated by Polyurethane, Waterproof, Fire retardant and UV

treated. 0.4mm thick, 10oz

- Tent size: 13’ x 13’

- Tent height: 9’

- Weight: 150 lbs

- Time to inflate: About 5 minutes

- Custom sizes are available

View full product details »

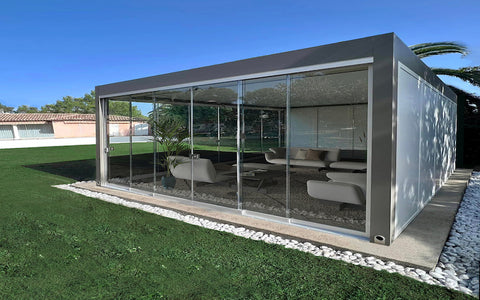

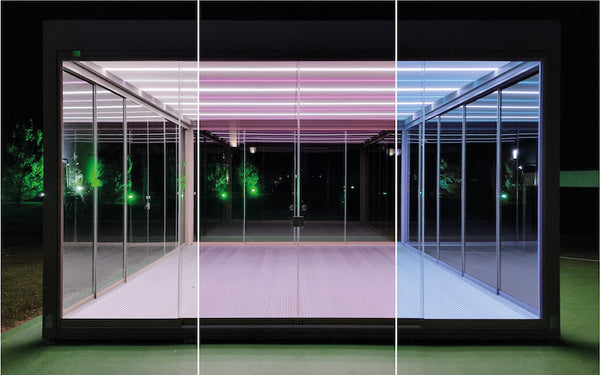

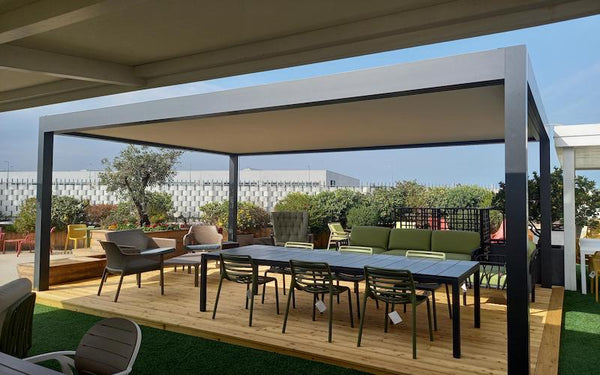

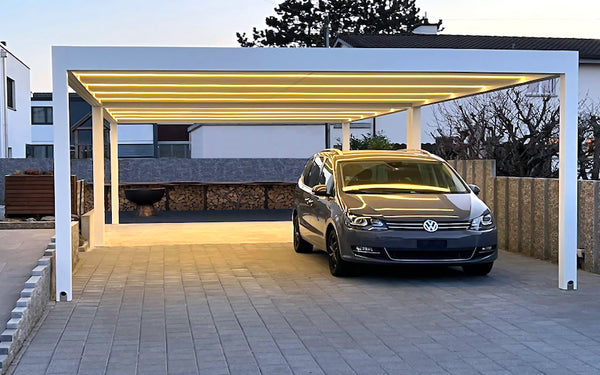

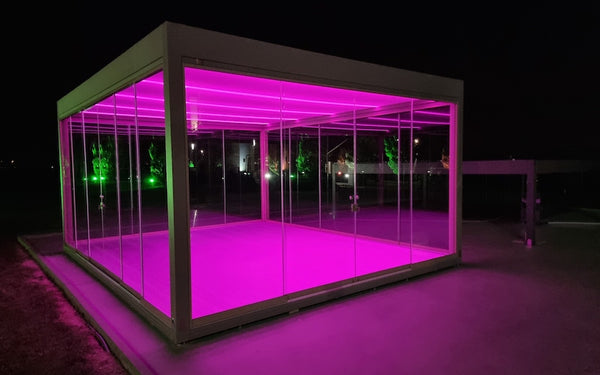

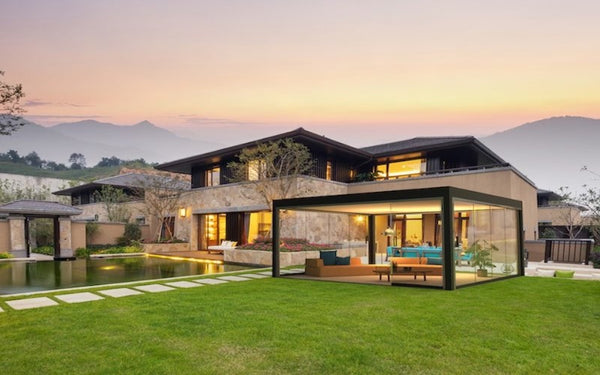

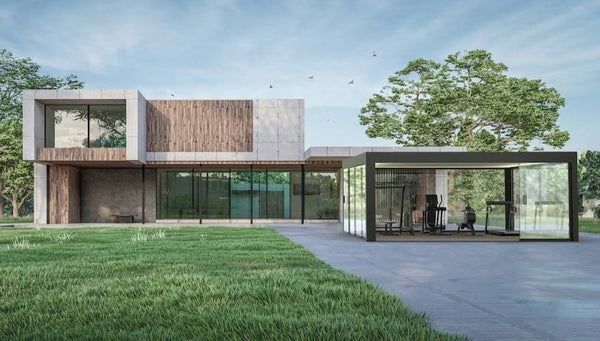

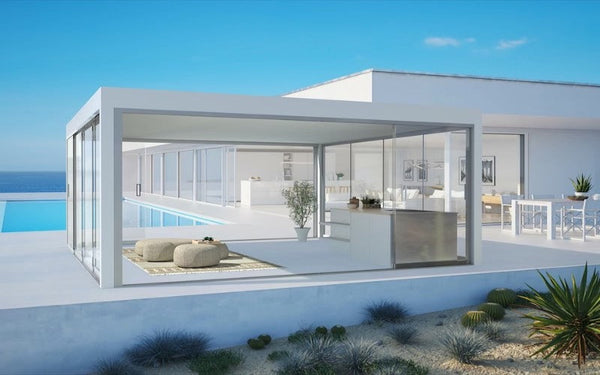

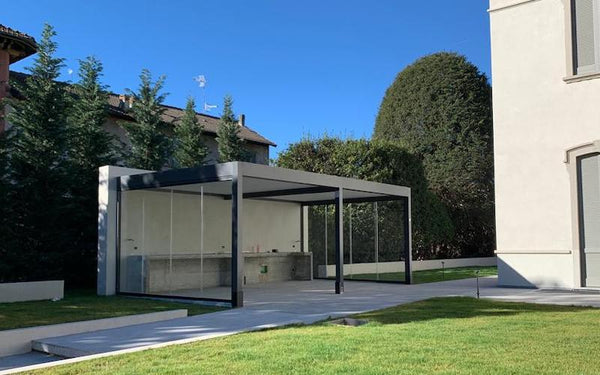

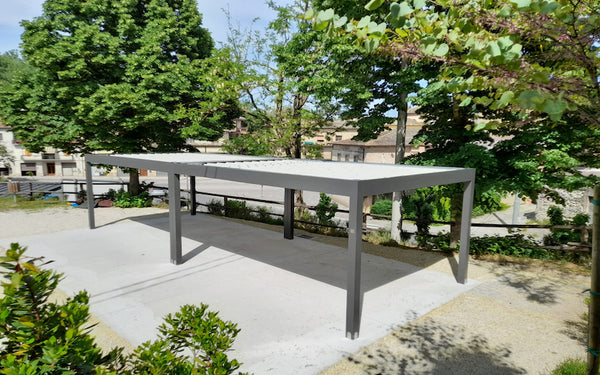

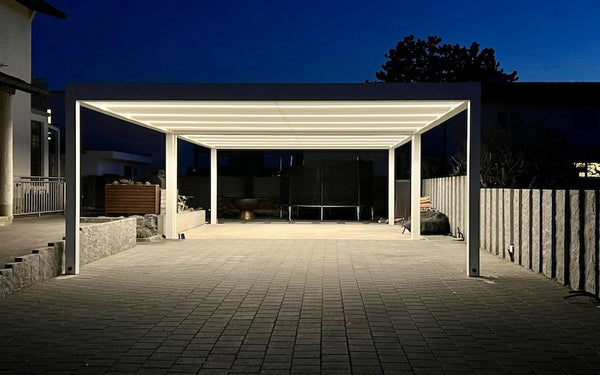

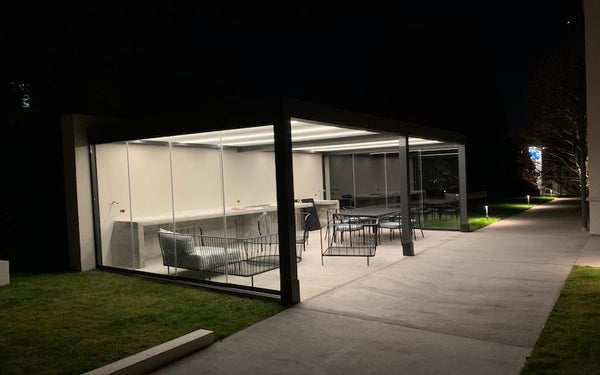

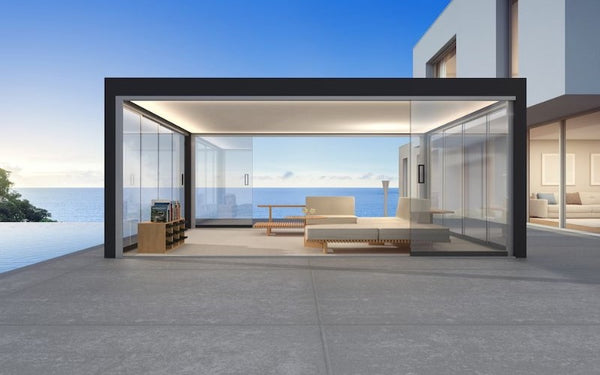

ECLETTICA - Fixed Hard Roof Gazebos

Price on Application

ECLETTICA is a unique, elegant structure which is waterproof, visually stunning and designed to minimise acoustic reverberation.

The main point of difference from the QZEBO is the fixed roof with integrated ambient lighting and sound absorption technology. The ECLETTICA roof is made from soundproof panels to reduce noise pollution, hence provides a peaceful environment to enjoy.

It can be installed quickly, at almost any location. For example, a 5m x 6m can be assembled in 4 hours by 2 people with lifting equipment. ECLETTICA does not require maintenance or after-sales services.

The standard range of ECLETTICA gazebos are available in width spans from 3m through to 6m. We also offer the opportunity to customise to suit a variety of spans, lengths and heights.

The modular design enables ECLETTICA cubes to be linked easily to further expand your usable outdoor space without having destructive works carried out.

The ECLETTICA would be a stylish addition to any domestic garden or terrace for private use, and is perfect for the hospitality industry hosting outdoor dining at bars, restaurants and boutique hotels.

Features

FAQ

What is Eclettica, and what are its key features?

Eclettica is a pergola with a false ceiling designed to reflect sound waves on its walls. It also features a roof suitable for the installation of solar panels, allowing you to generate energy from renewable sources.

Why is Eclettica considered a harmonic synthesis of different technologies?

Eclettica combines various technologies to address the growing demand for ecological solutions and the need for all-around comfort, including considerations for acoustics and aesthetics.

What is unique about the design of Eclettica?

The distinguishing feature of Eclettica is its sober, simple, and essential lines. It has a forward-looking design that encourages interactions between communities and nature while producing renewable energy.

How does Eclettica enhance acoustics and visuals?

Eclettica's design includes a false ceiling equipped with a membrane and panels that reflect sound waves. It also offers the option to install solar panels on its roof, enhancing both acoustic and visual aspects.

What is the advantage of having solar panels on the roof of Eclettica?

Solar panels on the roof of Eclettica allow you to harness renewable energy from the sun, reducing your carbon footprint and contributing to sustainability.

Are there color and finish options for Eclettica?

Eclettica features warm colors and a matte finish, painted with high-resistance epoxy powder. This enhances the product's quality and durability while giving it a cozy appearance that complements natural elements.

Can Eclettica be customized with additional accessories?

Yes, Eclettica can be complemented with various accessories, including sliding edging profiles with PVC or glass membranes, decorative drapes, telescopic features, and glass windshields. These options allow you to tailor Eclettica to your specific needs and preferences.

Is Eclettica suitable for both residential and commercial use?

Eclettica can be used in both residential and commercial settings, making it versatile for various applications, such as creating comfortable outdoor spaces in homes or enhancing the ambiance of commercial establishments.

How can I obtain more information about Eclettica, including pricing and installation details?

For detailed information about Eclettica, including pricing, installation guidelines, and availability, please contact the manufacturer or supplier directly. They will be able to provide you with specific product details and assist with your inquiries.

Is Eclettica designed to withstand outdoor weather conditions?

Eclettica is designed to withstand outdoor weather conditions, but the durability may vary depending on factors like the climate and the specific accessories chosen. It's advisable to discuss your requirements with the manufacturer to ensure the product suits your environment.

How much snow load can Eclettica withstand?

Eclettica can support snow loads of up to 50 kg per square meter (100 kg per square meter in the reinforced version) and is designed to withstand wind forces.

Does Eclettica offer thermal control?

Yes, Eclettica features an isothermal cover with sandwich panels that helps maintain a controlled internal temperature, enhancing comfort in various weather conditions.

Can Eclettica provide acoustic control?

Absolutely, Eclettica allows for the integration of sound-absorbing panels, which can reduce environmental noise and provide maximum acoustic comfort.

Is Eclettica an eco-friendly choice?

Yes, Eclettica can integrate various types of photovoltaic modules, making it a sustainable choice for harnessing solar energy. There's also an option for an integrated turnkey photovoltaic system, known as the Eclettica Solar Power photovoltaic pergola.

What other features does Eclettica offer?

Eclettica comes with a simplified structure requiring minimal maintenance. It offers integrated drainage, LED lighting, and optional drop-down curtains and sliding glass that seamlessly integrate with the structure.

What are the dimensions of the standard module for Eclettica?

The maximum dimensions of the self-supporting standard module are 500 x 600 cm, with a maximum total height of 326 cm. Eclettica is available in square or rectangular shapes.

What is the supporting frame made of?

The supporting frame of Eclettica is 100% aluminum, designed with typical Italian craftsmanship.

What are the standard frame colors available for Eclettica?

The standard frame colors include White (matt), Dove Grey (matt), Dark Brown (matt), and Special Grey (smooth). Additional colors from the RAL range with smooth glossy or smooth matt finishes are available upon request.

What type of fabric is used for the roofing sheet?

Eclettica uses mainly Precontraint PVC fabric by Ferrari, a renowned manufacturer of structural fabric used in tensile structures.

What optional features are available for Eclettica?

Optional features for Eclettica include sliding closures with side openings, sliding glass windows, VOK roller blinds, sliding rollers with zips (complete with case and side rails), and a lighting system called Stip LED.

Can I have flooring?

Yes we can provide integrated Horizon flooring for every size.

View full product details »

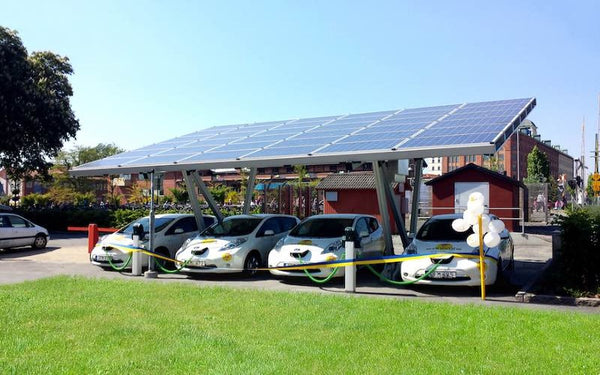

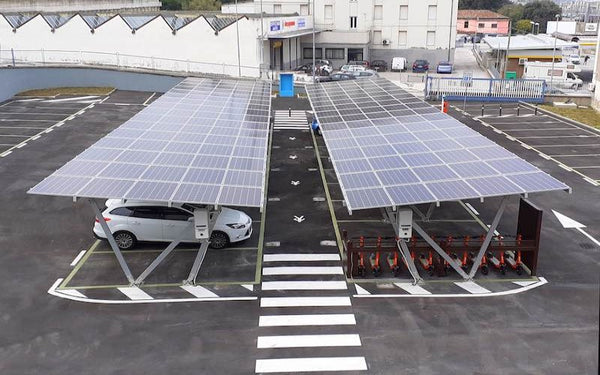

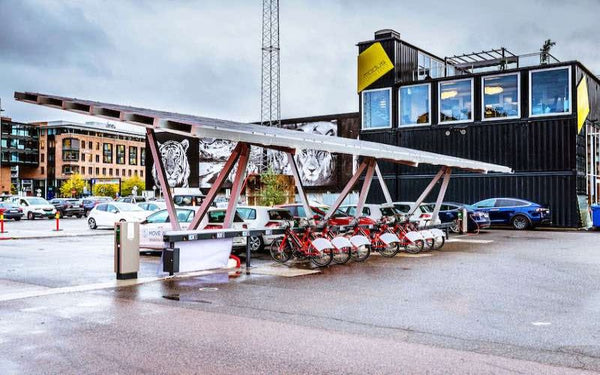

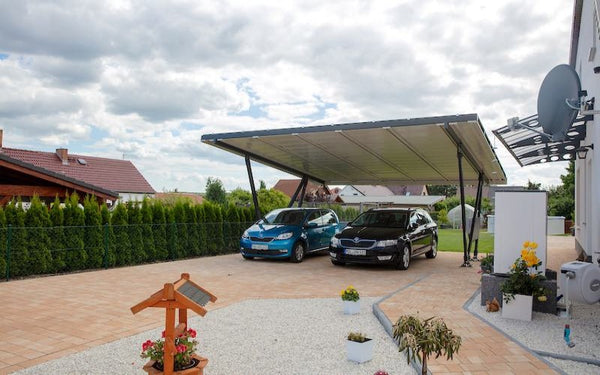

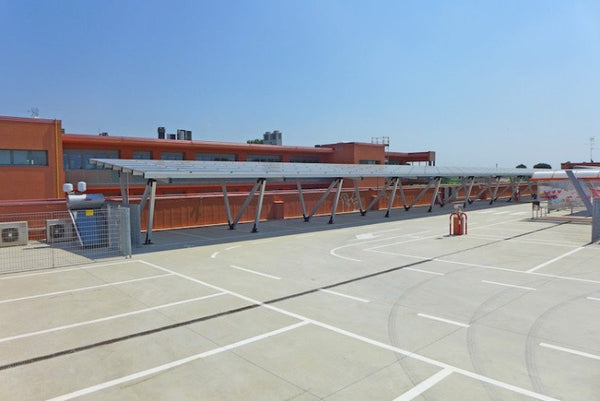

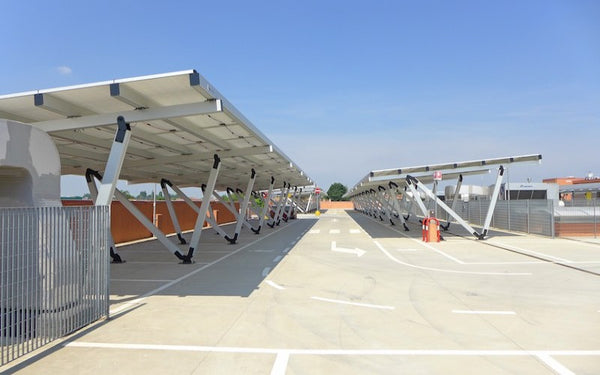

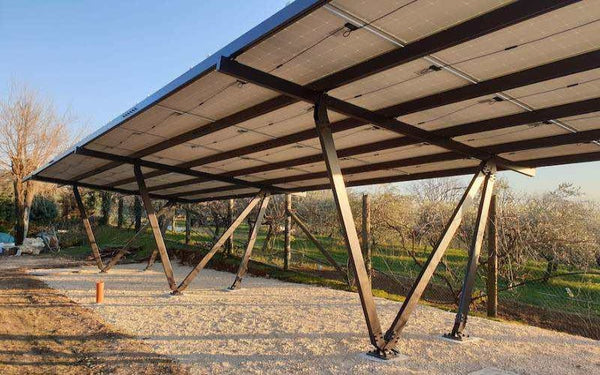

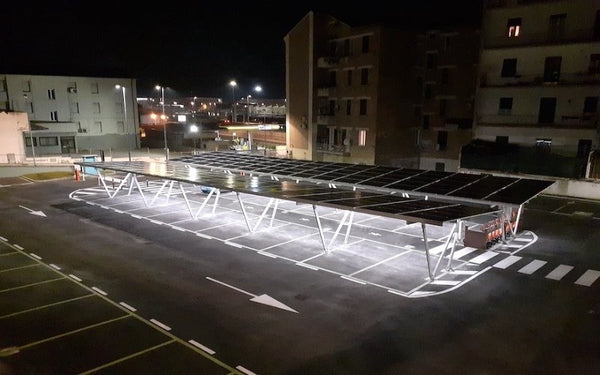

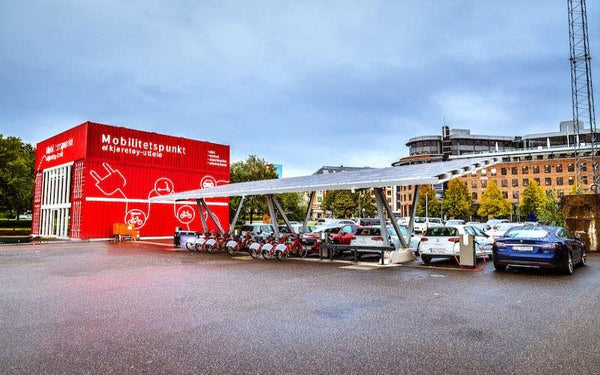

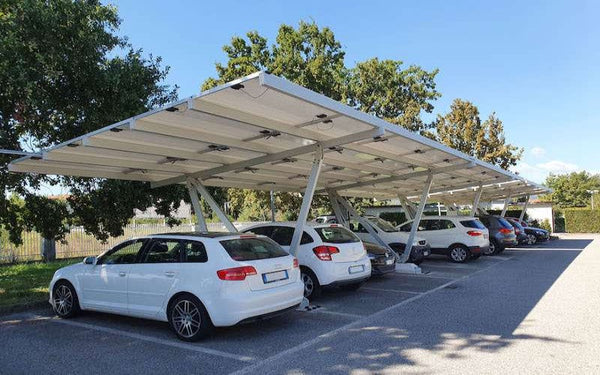

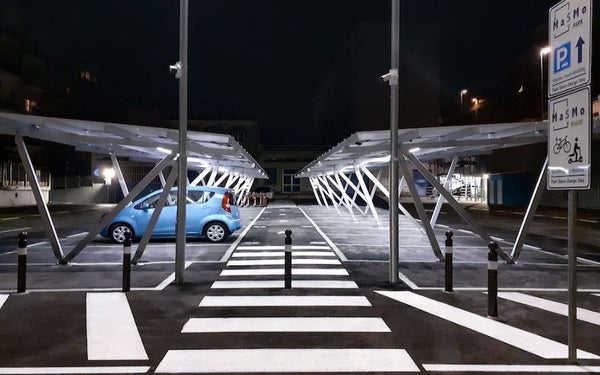

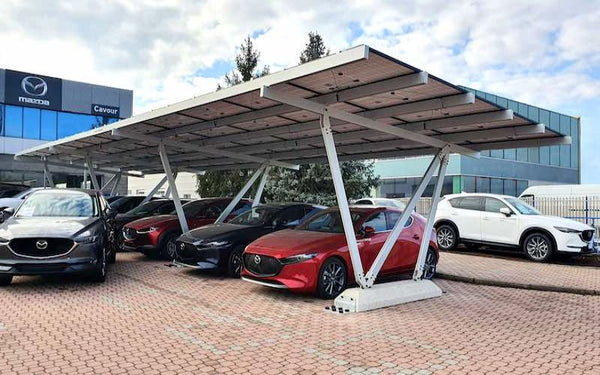

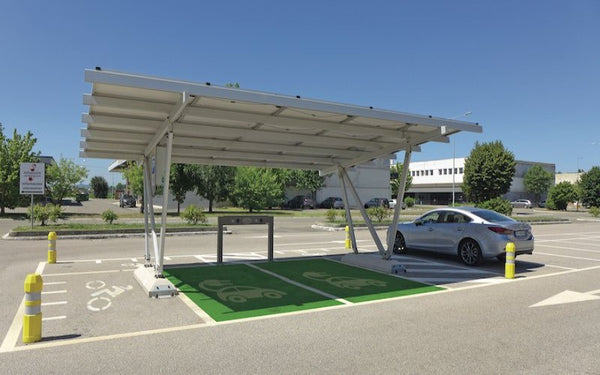

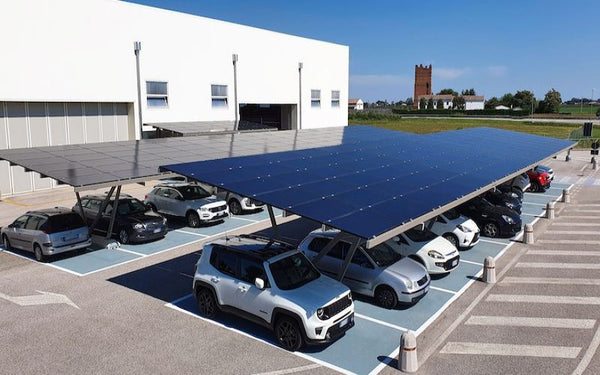

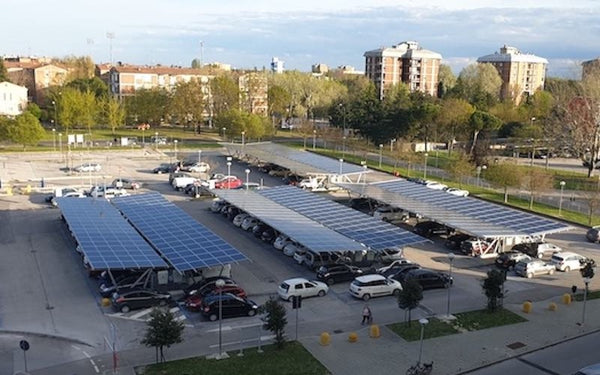

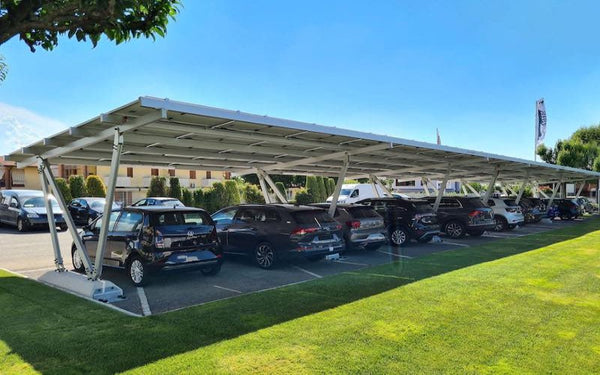

Pensilsole Solar Carport

Price on Application

Pensilsole Solar Carport is an aluminium photovoltaic carport. Manufactured in Europe, the Pensisole is an elegant solution for assisting client's to generate solar energy for self-consumption.

Pensilsole Standard - Middle or Maxi

Pensilsole Standard can be quickly installed, and can also accommodate advertising panels to the profiles to maximise visibility of your brand.

Ground fastening systems:

1. Installation without foundation works with reinforced concrete ballast bases. We suggest using ballasts on asphalt, concrete and on driveways in self-locking bricks. This solution is faster to install.
2. Installation with special steel plates on reinforced concrete foundations. We suggest using anchor plates for bigger works and on non-stabilised soils. Foundation works are required when using anchor plates.

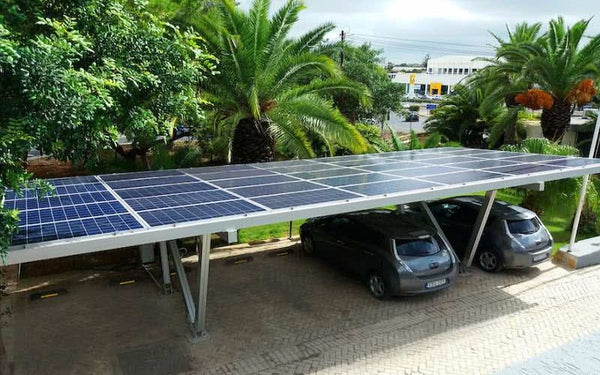

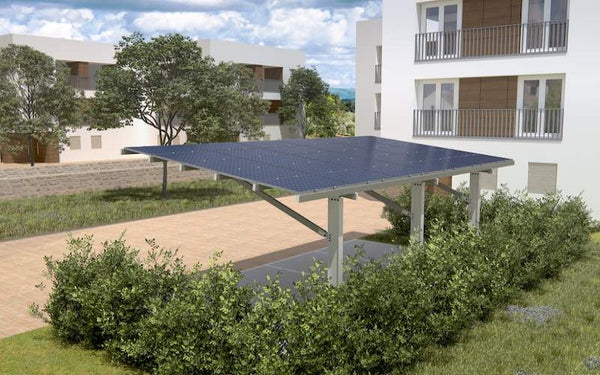

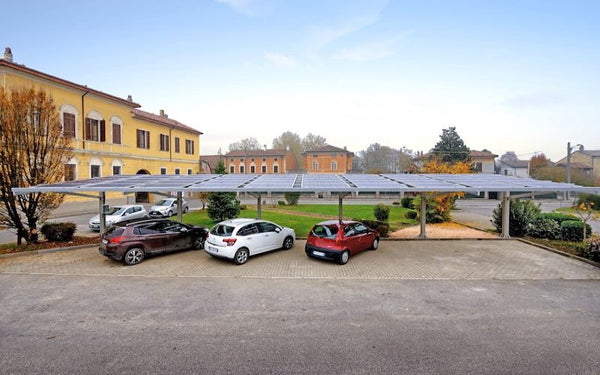

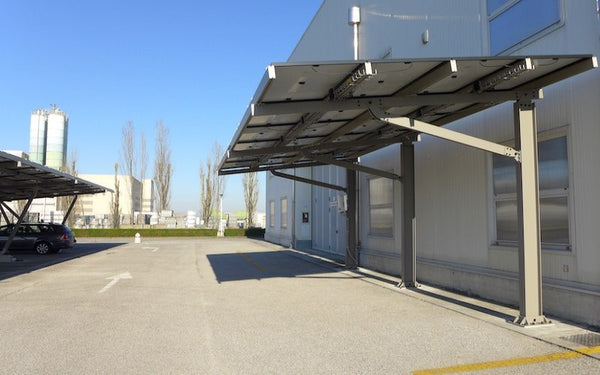

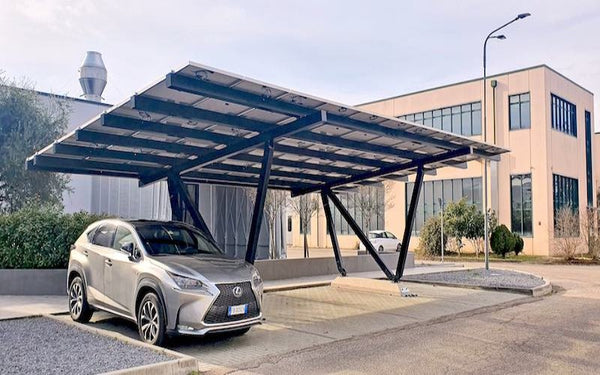

Pensilsole Cantilever

Pensilsole Cantilever gives cars maximum freedom to manoeuvre by reducing the frame works attached to the ground.

Ground fastening systems:

1. The structure is fixed on reinforced concrete foundations. Foundation works are always required.

WHY USE IT

• Covered parking spaces protect vehicles from the environment, thereby saving you money.
• Generate green energy by installing solar panels. Incorporate an energy storage unit to store energy for the night usage, or feed back into the grid.
• Using solar panels as the carport roof, instead of fixing them to existing structures, is a great way to provide easy access for installation and routine maintenance, and doesn't damage pre-existing buildings.
• Turn your carport into an EV Charging station for use with cars, bicycles and scooters.
• Show the world your 'Green' credentials. Integrate your carport with EV Charging units branded with your company logo and colours.
• Use a customised colour to integrate your Pensilsole so it sits in harmony with neighbouring structures.
• High-quality design. Individual components are CE certified

WHO WILL USE IT

• Turn your retail or corporate car park into an asset! Protect vehicles from the environment while generating solar energy. Use that energy during the day for  EV charging and at night for security lighting, or exchange it on the grid and save on energy bills.
• Municipalities and councils can join the E-Mobility revolution and lead by example. Encourage the public and local businesses to invest in electric vehicles by providing easy access to charging stations. Save money for local constituents by generating their own solar energy for consumption.
• Make your residential strata building EV ready and compliant. Installing solar panels on a pre-existing rooftop can risk damage to the roofing membrane. A canopy installation allows the system to be easily installed, provides easy access for solar panels to be cleaned and controlled, ensuring maximum performance over time.
• Private residences who want to save on their electricity bills or have a designated safe outdoor area for charging E-bikes, e-scooters and other light electric vehicles (LEV). LEVs should be stored and charged outside in a garage or carport, away from living spaces and combustable materials to prevent fires.

TECHNICAL

• The structure is made out of aluminium profiles and powder coated steel components cataphoresis treated. No ordinary maintenance is needed.
• Compatible with any photovoltaic panel, so you can choose your preferred solar supplier with confidence.
• Quick installation time. The rapid assembly reduces the installation cost and avoids any interruption to regular activities while work is carried out. This is particularly useful for council, retail and corporate car parks where the scale of projects is large.
• Adaptable to new needs that arise over time, like adding more modules, or switching to higher performance panels as the technology is perfected.
• The structures are modular and on request can be fitted with an efficient guttering system.
• The structures are customisable in size and colour. Rigid branded advertising panels with logo and graphics can be installed.
• Limited maintenance.
• Standard Pensilsole  can be supplied with optional concrete ballasts.
  The advantages are:
  1) No expensive foundations are required meaning little or no spoil.
  2) All carports on ballasts are meant as temporary structures, however to find
  out if your project will need planning permission contact your local authority.
  3) If needed the structure can be easily relocated to another place.
  Upon request a steel plates version is available to be bolted down onto existing or purpose built foundations.
• Choose from standard colours:
  1)  Anodized Silver
  2)  White (Matt finish)
  2)  Dove Grey (Matt finish)
  4) Dark Brown (Matt finish)
• Or customise your colour by choosing from the RAL range with a smooth finish.

View full product details »

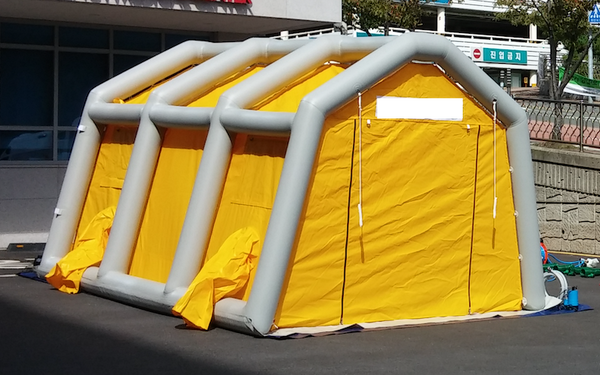

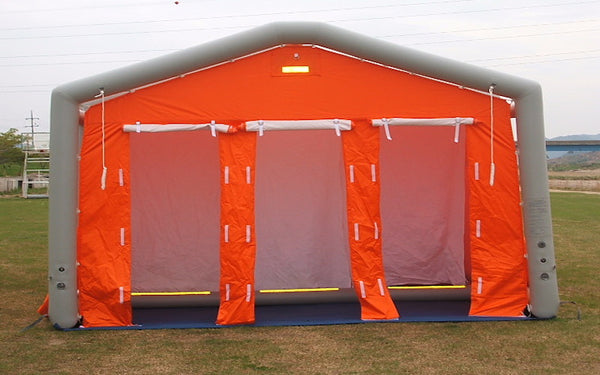

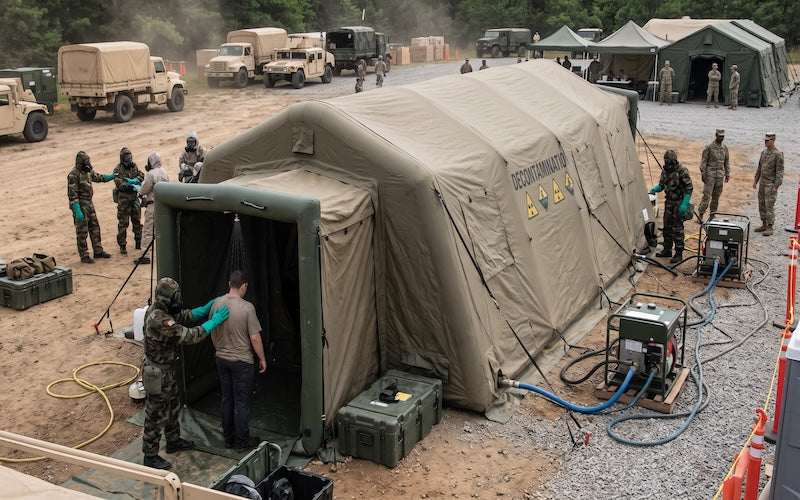

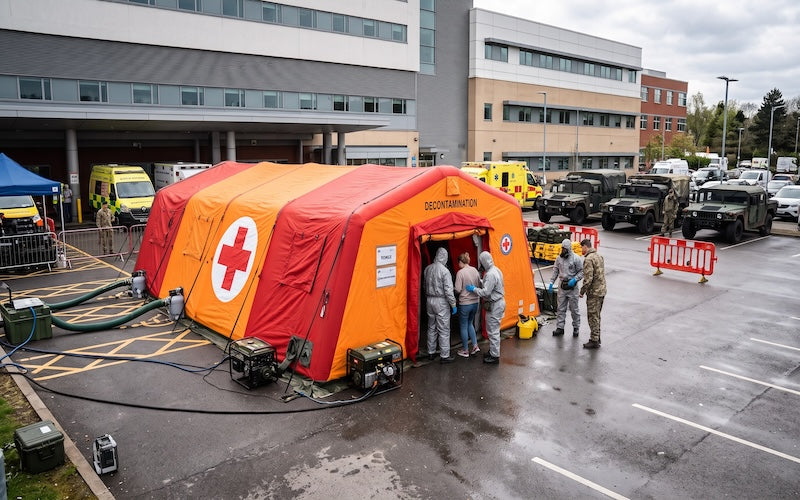

Inflatable Sanitisation and Decontamination Tunnel / Tent

£5,275.00 GBP

Inflatable Decontamination and Sanitization Tunnel
Overview
The Inflatable Decontamination and Sanitization Tunnel offers an efficient, fast, and reliable solution for comprehensive sanitation in various emergency and medical settings. Ideal for use by fire departments, medical facilities, and hospitals, this system ensures thorough disinfection of all surfaces through an atomized liquid spray, even reaching areas not directly exposed to the nozzles.

Key Features
Complete System: The tunnel comes fully equipped with an atomizing sanitization unit, including pre-installed plumbing hoses and nozzles for immediate use.

Ease of Use: Simply inflate the tunnel, and it’s ready for operation. Designed for quick setup and efficient decontamination.

Durable Construction:

High-Quality Materials: Rigid, high-quality inflatable fabrics maintain inflation for weeks without needing reinflation.
Weather Resistant: Capable of withstanding heavy rain and strong winds, making it suitable for various environmental conditions.
Robust Design: Built to be durable and resistant to wear and tear.
Rapid Deployment:

Fast Setup: Can be erected by just 2 to 4 people in under 5 minutes.
Compact Storage: After deflation, the tunnel can be packed into a compact bag for easy transport and storage.
Versatile Connectivity:

Additional Components: Easily connectable to other decontamination equipment such as water tanks, pressure control tanks, water heaters, and contaminated water storage solutions.
High Air Pressure Capacity: Durable frame supports high air pressure up to 0.35 Bar, with a built-in relief valve to prevent overpressure.
Applications
Fire Departments:
Post-Incident Decontamination: Effective for decontaminating fire equipment, gear, and personnel after responding to incidents involving hazardous materials. Ensures thorough cleaning of surfaces exposed to smoke, chemicals, and contaminants.
Medical and Hospital Wash-Down:
Infection Control: Ideal for sanitizing medical equipment, vehicles, and personnel in medical facilities and hospitals. Provides comprehensive disinfection to prevent the spread of infections and ensure a sterile environment.
Emergency Response: Useful in emergency situations where rapid decontamination is required to protect patients and medical staff from exposure to hazardous substances.
Benefits
Efficient Sanitization: Atomized spray provides thorough coverage, disinfecting all surfaces, including those not directly exposed to nozzles.
User-Friendly: Simple to set up and operate, making it suitable for a range of applications.
Long-Term Reliability: Designed for extended use and robust performance, ensuring a reliable solution for decontamination needs.

Technical Features

Frame material

- Heavy-duty inflatable fabric, 1000 Denier Polyester coated by PVC on both sides

- Durable up to holding 0.35bar air pressure and more - Weight : 1,100 g/m2

- Thickness : 0.9mm

- Tensile strength : FS#191 5102 - 400/340 Lbf/inch

- Tear strength : FS#191 5134 - 65/85 Lbf

View full product details »

Decontamination and Sanitation Tunnel LITE

Price on Application

As countries gear up to fight the spread of COVID-19, there is a requirement for products to help fight the spread of contagions. Hence we launched the Sanitary Gate with our Italian partners in March.

Since then, customers have been asking for a lightweight option suitable for temporary use and easy to freight, so we now offer the Sanitation Tunnel LITE.

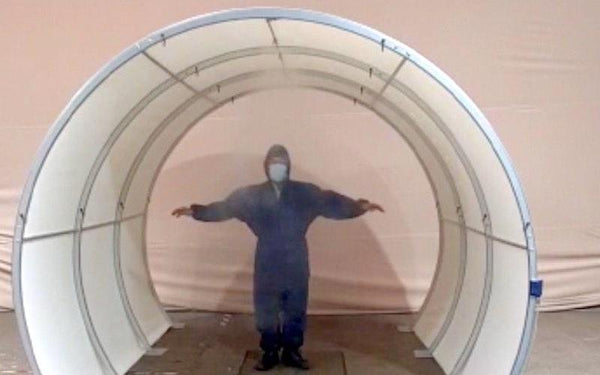

A lightweight Sanitation Tunnel to protect society by decontaminating people, vehicles, equipment and goods.

Details

Our proven solution of Stretch Tunnels have been upgraded to integrate a spray system for the atomisation of sanitary biocides and virucides. The tunnel contains the atomised liquid spray inside to effectively saturate the environment. Thus it is possible to disinfect all surfaces even those which are not directly exposed to the nozzles.

Designed and manufactured in Australia, our Sanitation Tunnel LITE provides a versatile solution for preventing the spread of contagions.

• Fast assembly in a few hours
• Easy installation, modification or relocation as the frame is modular
• User and operator friendly
• We stock two standard sized tunnels, 2m and 3m profiles.
• We can customise the dimensions to suit when greater lead time is available.
• Branding the skin is an option.
• Different coloured skins are available.

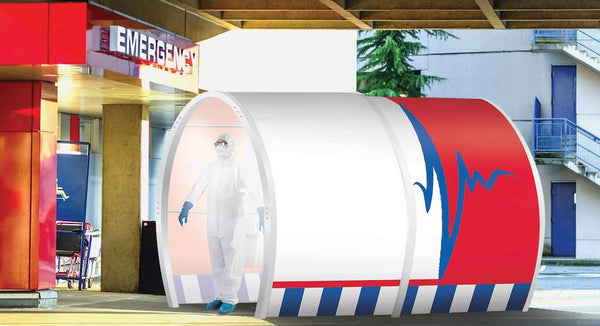

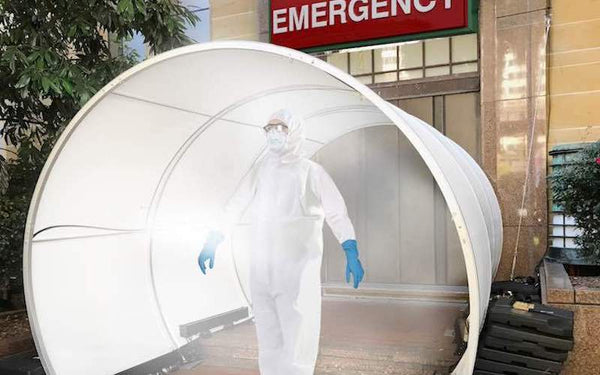

• Tunnels can be installed at the entrance of hospitals, pharmacies, airport terminals, public offices, supermarkets, ports, stations.

• Tunnels can be linked together or linked to existing structures or buildings.
• Suitable for all private companies who need to sanitise the workforce, goods, vehicles and materials.

Included in Package

Sanitation Tunnel

Standard white fabric skin
Standard aluminium frame
2m (6.5ft) L x 3m (10ft) W x 2.4m (8ft) H or 3m (6.5ft) L x 3m (10ft) W x 2.4m (8ft) H
150-160kg

Pump module

53cm L x 33cm W x 40 cm H
26kg

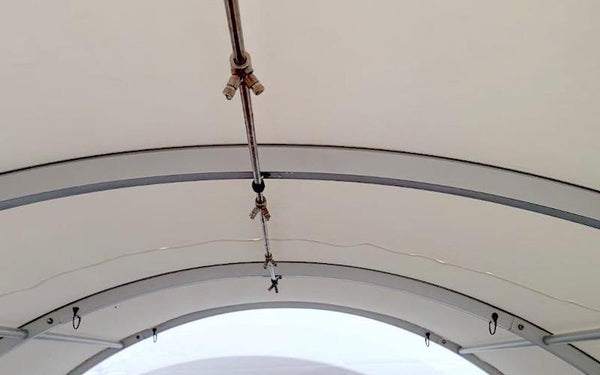

Misting box

40 cm L x 22cm H x 40 cm W
4 kg

Motion Sensor

Tunnel Installation Video

The below video shows how easy a Stretch Tunnel is to install.

View full product details »

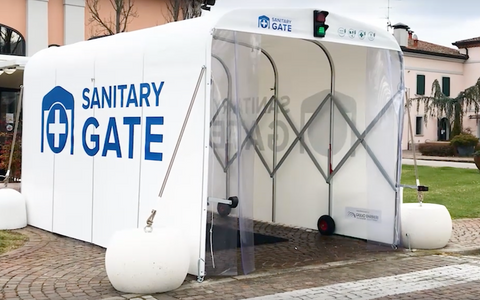

Decontamination and Sanitation Tunnel

Price on Application

The serious global situation has led us to create a solution that can be of public value: a disinfection tunnel with an integrated, hydraulic system for the atomisation of any biocides and virucides. The tunnel contains the atomised liquid spray inside to effectively saturate the environment.

In this way it is possible to disinfect all surfaces even those which are not directly exposed to the nozzles.

Designed and manufactured in Europe, our Sanitation tunnel solutions provide a perfect versatile solution

 SANITARY GATE BROCHURE

 RETRACTABLE TUNNEL SPECIFICATIONS

What is it used for

Sanitary and decontamination Tunnels and Gates represent a safe protection and entry for everyone, in particular for those who work in close contact with groups and are therefore at higher risk.

It can be installed at the entrance of public offices, pharmacies, supermarkets, airports, hospitals, ports, stations. It is suitable for all private companies who need to sanitise the workforce, goods, vehicles and materials.

How it Works

The tunnel creates an obligatory passage and is equipped with, internal arc-shaped atomising nozzles that saturate the environment but preventing dispersions.

The nebulisation system is connected to a control system capable of automatically mixing the sanitising product at percentages indicated by the manufacturer.

Access to the tunnel is regulated by a traffic light with motion detection. By placing a barrier floor inside the Sanitary Gate, it is possible to sanitise the surface in contact with the ground

Technical Features

• Fast assembly in a matter of hours to a few days.
• Foundation-free.
• Maintenance-free for reduced total lifetime investment.
• Space saving: a standard 4 mts tunnel can be retracted up to a minimum of 35 cms when not in use (this is a Rb1 tunnel on nylon wheels)
• Suitable for permanent or temporary installation
• Easy installation, modification or relocation as the frame is modular and expandable.
• User and operator friendly
• Coloured roofs and frames, clear windows and covers, curtains (sliding or with central opening) branding and signwriting are available.
• Tunnels can be linked together or linked to existing structures or buildings (flashing and plates are available to facilitate a smooth connection)
• Completely tailored, made to measure and fully customizable to site's requirements
• Innovative and unique design
• Long-lasting and cost effective
• Widths: from 2.5 mt up to 12 mts
• Eave height: from 1.8 mts up to 5 mts
• Reduced height tunnels - roof only systems - wall mounted models either single and double pitch, fixed, curved, sloped modules, bespoke sizes smaller or larger are available upon request
• Wheel Options: pneumatic tyres, nylon wheels (with and without lift proof tracks) multi-directional pneumatic tyres, multi-directional nylon wheels, heavy duty wheels and much more.
• Eyelets, stainless steel tracks, safety straps, handles to pull the tunnel back as an option
• covers are made from single panels, each a metre wide, which are fitted into the profile’s groove with a kader strip on both sides

View full product details »

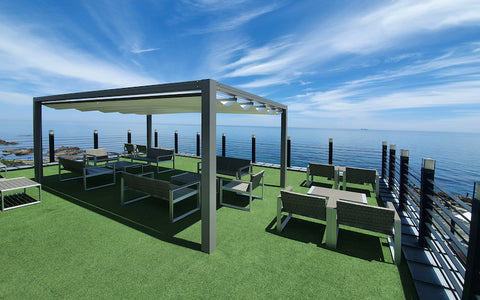

ONDA - Fixed Retractable Roof Gazebos

Price on Application

Discover Onda, the retractable roof pergola, perfect for creating a unique atmosphere in your outdoor space, allowing you to adjust the shade and light according to your preferences.

Whether you prefer a freestanding or lean-to structure, Onda adapts to your needs. Its design is characterized by simplicity, both aesthetically and mechanically: the opening system is manual to ensure product longevity, and it has been designed to provide extremely easy and effortless operation. This contemporary pergola blends harmoniously with the surrounding landscape and architecture, offering a cozy space dedicated to comfort and relaxation.

Attention to detail is reflected in the choice of volumes, materials, and color schemes, creating new, minimal, and innovative forms. Regardless of the architectural style of your space, the Onda pergola seamlessly integrates, leaving its timeless imprint. Its timeless elegance promotes a perceived simplicity that harmoniously combines with sophisticated and cutting-edge design.

Features

• Bioclimatic pergola manufactured with aluminium profiles and galvanised polyester powder coated steel components.
• Retractable awning with PVC inserts
• FEET
  standard / hidden / for sandy ground
• Individual components are CE certified
• Retractable sun shade 100% made in Italy
• The structure of the retractable awning can be extended sideways by installing additional modules.

FAQ

What is Onda, and what are its key features?

The Onda retractable roof pergola is a versatile outdoor structure designed to create a unique atmosphere in your outdoor space. It allows you to adjust shade and light according to your preferences. Onda adapts to your needs, whether you prefer a freestanding or lean-to structure. Its design is characterized by simplicity, both aesthetically and mechanically, ensuring longevity and effortless operation. This contemporary pergola harmoniously blends with surrounding landscapes and architectures, providing a cozy space dedicated to comfort and relaxation.

What is the supporting structure of the retractable awning made of?

The retractable awning's supporting structure is made of aluminum and is manufactured with aluminum profiles and galvanized polyester powder coated steel components, ensuring durability and stability.

The distinguishing feature of Eclettica is its sober, simple, and essential lines. It has a forward-looking design that encourages interactions between communities and nature while producing renewable energy.

What are the color options available for the Onda pergola's frame?

The Onda pergola's frame comes in standard colors such as white (matte), dove grey (matte), and dark brown (matte). Additionally, other colors from the RAL range with a smooth finish are available upon request.

What type of fabric is used for the roof cover of the Onda pergola?

The fabric used for the roof cover of the Onda pergola is primarily Precontraint PVC by Ferrari, a leading manufacturer of structural fabric used in tensile structures. Various types of PVC fabric are available, including Ferrari Soltis 96 Mesh, Ferrari Soltis 96 waterproof lining, Ferrari Precontraint 402, and Ferrari Precontraint 602 blackout matte, each offering unique color options.

Can the retractable pergola be branded with advertising?

Yes, branding is possible on the windowless side walls of the retractable pergola. However, please note that branding cannot be applied to Soltis 96 fabric.

What additional options are available for the Onda pergola?

Can additional modules be added to the retractable awning for customization?

Yes, the structure of the retractable awning is modular, allowing you to extend it sideways by installing additional modules. This feature enables customization according to your specific outdoor space requirements.

View full product details »

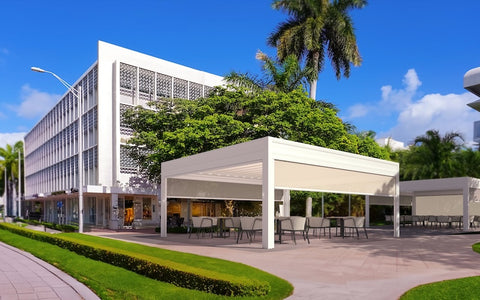

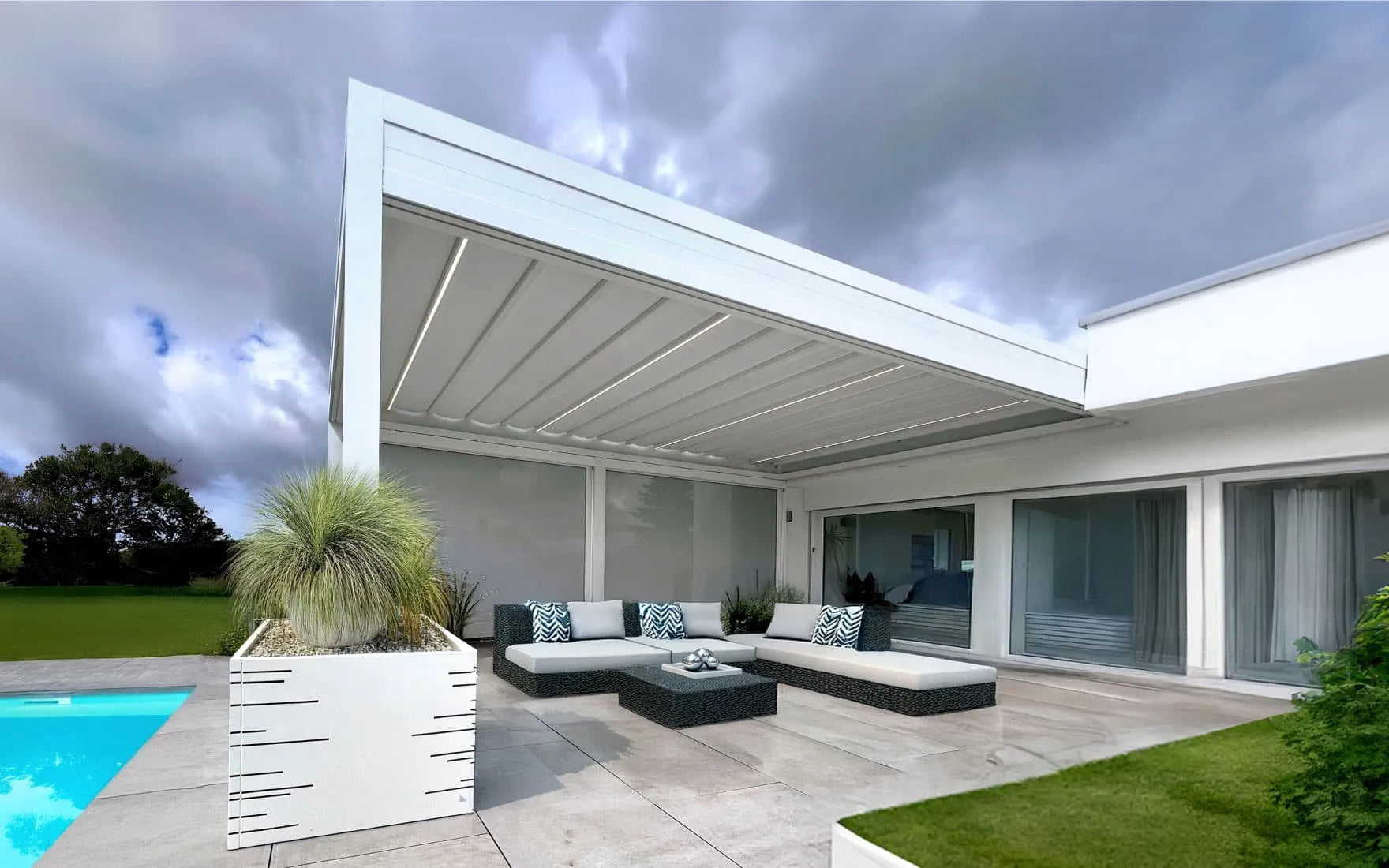

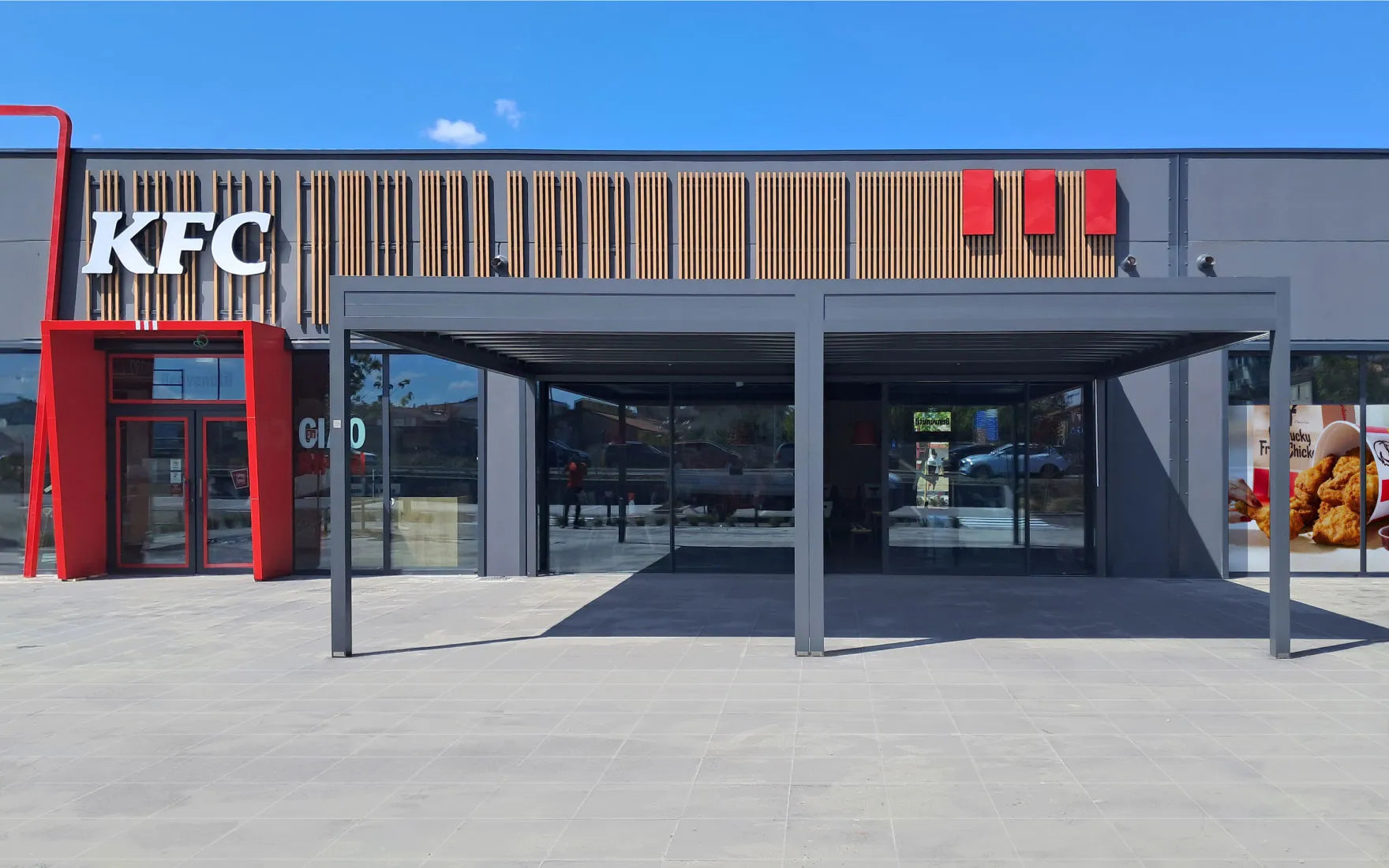

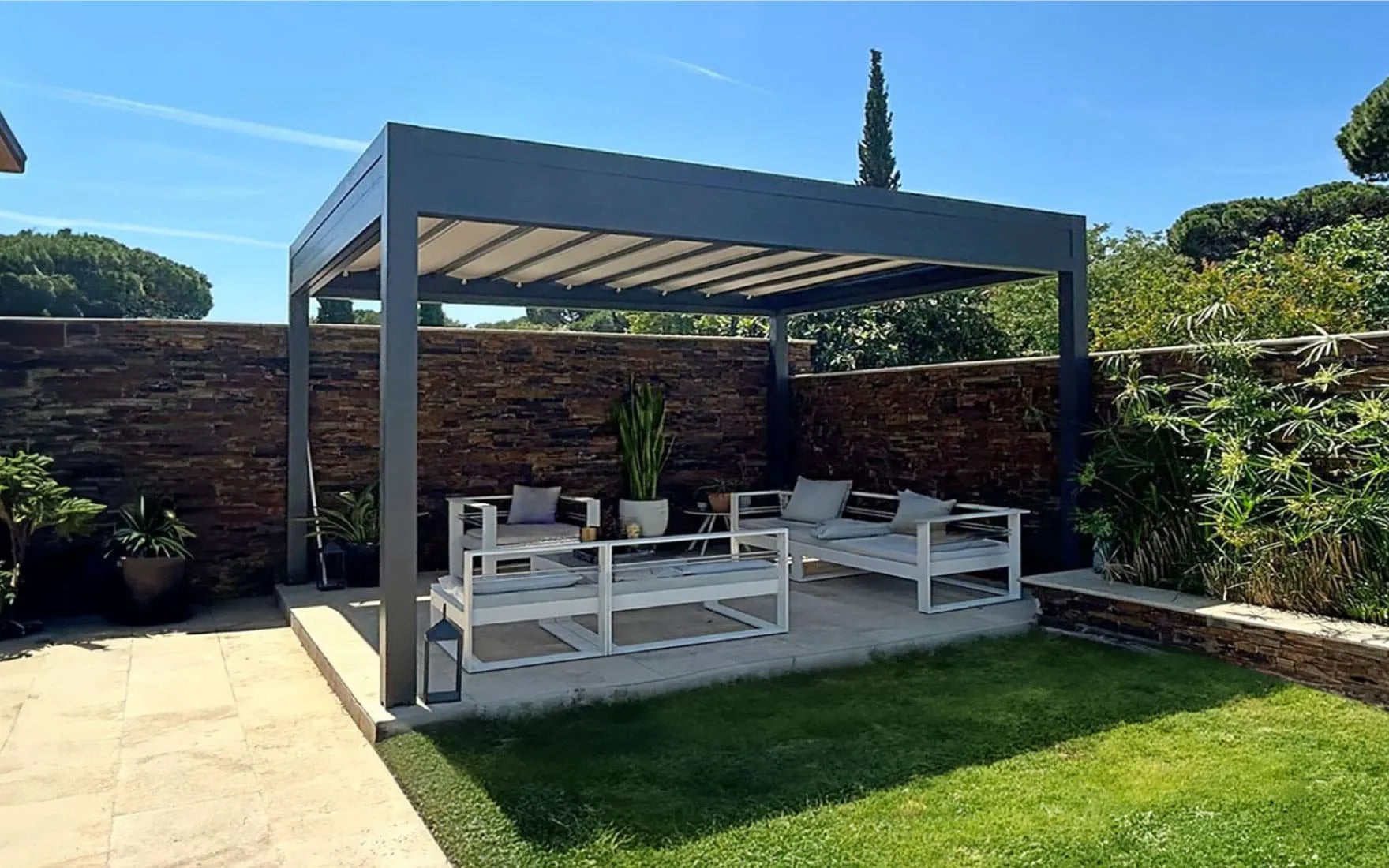

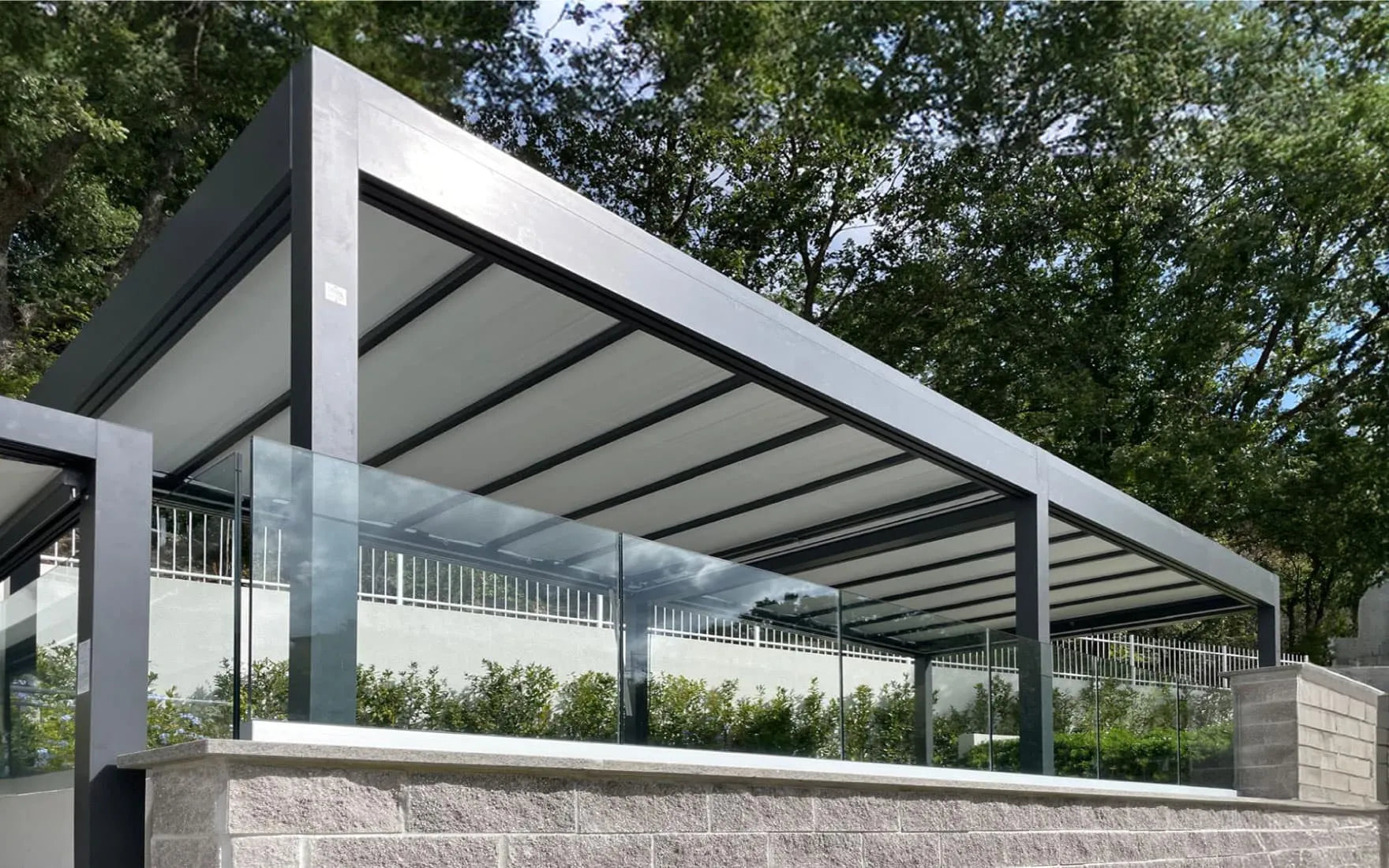

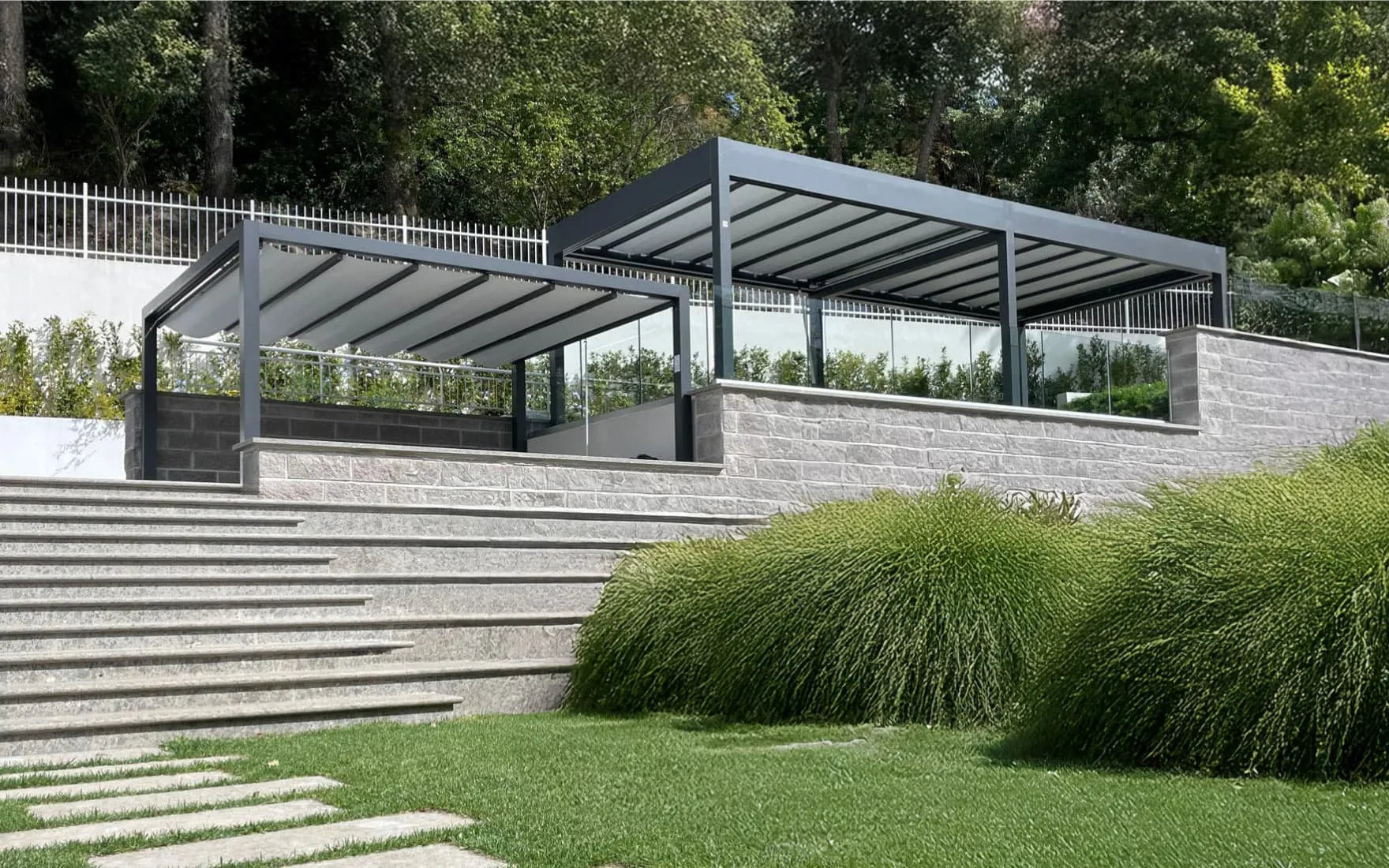

Arcadia - Retractable Roof Pergola

Price on Application

Introducing Arcadia—an innovative retractable roof pergola meticulously crafted to elevate outdoor spaces into distinctive and inviting environments. This cutting-edge solution empowers you to embrace the sun's warmth or seek shelter in the shade, effortlessly adapting to external weather conditions and personal preferences.

The design seamlessly blends aesthetics with functionality. Its sleek profile ensures durability, while the manual opening system guarantees ease of use, making your outdoor experience both elegant and effortless.

Here are five compelling reasons to choose Arcadia:

1. Effortless Protection: Arcadia's sliding cover allows you to effortlessly open and close the upper fabric with a simple gesture, giving you the freedom to effectively manage your outdoor space at any time of the day.

2. Sleek Minimalist Design: Arcadia's essential and linear shapes, coupled with its minimalist design, make it stand out. This modern structure embodies a perfect balance of innovation and elegance, seamlessly harmonising with any outdoor landscape.

3. Low Maintenance and Durability: Arcadia is designed for minimal periodic maintenance. Cleaning the aluminium profiles and cover is all that's needed. We prioritise lightweight, durable, and corrosion-resistant materials like aluminium and PVC, ensuring longevity while preserving their qualities.

4. Strength and Practicality: Arcadia excels in mechanical design, featuring a manual sliding cover with special trolleys for smooth and silent movement—eliminating the need for a motorised system. The integrated magnetic locking system is highly resistant to wear and breakage, ensuring long-term reliability and functionality.

5. Ease of Installation: The meticulous design and simplicity of components ensure incredibly fast installation times. Every element of the Arcadia pergola is crafted to minimize the time and effort required for assembly, making it a hassle-free addition to your outdoor space.

FAQ

What is Arcadia and what are its key features?

A pergola with manually operated sliding cover , The Arcadia -K offers an integrated gutter system that seamlessly and allows for the addition of various types of walls from our VOK walls as well as zippered and elegant glass panels.

What makes Arcadia stand out?

Arcadia stands out with its seamless sliding cover for easy outdoor space management, offering instant shade or sunlight with a simple gesture. The pergola's minimal design embodies modern innovation and elegance, harmonizing effortlessly with any landscape

Can additional modules be added to Arcadia?

Yes, the structure of the shade canopy can be extended sideways by installing additional modules, providing further customization options.

Can Arcadia be branded with advertising?

Yes, The windowless side walls can be branded with advertising (NB: branding cannot be put on Soltis 96 fabric).  Additional advertising banners can be fixed to the Aluminium structure.

What colors are available for Arcadia's frame?

Arcadia's frame is available in standard colors such as white (matt), dove grey (matt), and dark brown (matt). Custom colors from the RAL range with a smooth finish are also available upon request.

What types of PVC fabrics are used for the roof cover?

.Kube's roof cover is made using Precontraint PVC fabrics by Ferrari, a renowned manufacturer of structural fabrics for tensile structures. Soltis Mesh , Soltis 96 , Precontraint 402 and the Precontraint 602 Blackout are available.

Is Arcadi suitable for both residential and commercial use?

Arcadia can be used in both residential and commercial settings, making it versatile for various applications, such as creating comfortable outdoor spaces in homes or enhancing the ambiance of commercial establishments.

Is Arcadia designed to withstand outdoor weather condition?

Arcadia is designed to withstand outdoor weather conditions, but the durability may vary depending on factors like the climate and the specific accessories chosen. It's advisable to discuss your requirements with the manufacturer to ensure the product suits your environment.

What are the dimensions of the standard module for Arcadia?

The maximum dimensions of the self-supporting standard module are 500 x 600 cm, with a maximum total height of 302 cm on the standard version with 332cm max height on the Arcadia K. Arcadia is available in square or rectangular shape.

Can I have flooring?

Yes we can provide integrated Horizon flooring for every size.

What additional options and accessories are available for Arcadia?

Arcadia offers various options and accessories, including LED lighting, ground anchoring, PVC wall straps, walls with central openings, sheer curtains, VOK roller blinds, and an Easy Floor system for added convenience and customisation.

View full product details »
